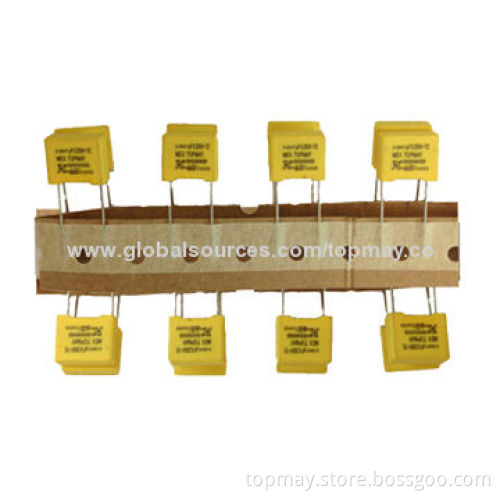

Film Capacitor, Made of Metalized Polypropylene Material, 280V AC Rated Voltage, RoHS Mark
  • Film Capacitor, Made of Metalized Polypropylene Material, 280V AC Rated Voltage, RoHS Mark
  • Film Capacitor, Made of Metalized Polypropylene Material, 280V AC Rated Voltage, RoHS Mark
Film Capacitor, Made of Metalized Polypropylene Material, 280V AC Rated Voltage, RoHS Mark
Film Capacitor, Made of Metalized Polypropylene Material, 280V AC Rated Voltage, RoHS Mark

Film Capacitor, Made of Metalized Polypropylene Material, 280V AC Rated Voltage, RoHS Mark

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Reference standard: GB/T14472-1998 (1CE60384-14)
    • Climatic category: 40, 100 and 21
    • Rated voltage: 280V AC
    • Capacity range: 0.0022 to 4.7μF
    • Capacity tolerance: ±5, 10 and 20%
    • Voltage resistance: 4.3Vr (5 seconds)
    • Dissipation factors:
      • ≤0.15% CR: ≤1.0μF
      • ≤0.3% CR: 1.0μF (20˚C, 10kHz)
    • Insulation resistance:
      • ≥30,000 seconds (CR ≤0.33°F)
      • ≥10,000 seconds (CR ≥0.33°F)
  • Features:
    • Box type provides identical outer appearance
    • Very low-loss at high-frequency and suitable for high-current
    • High-insulation resistance and long lifespan due to self-healing effect
    • Withstanding 2.5kV impulse voltage and class Y2
    • As an across line type noise suppression capacitor
    • Suitable for AC purpose
    • Non-inductively wound with metalized polypropylene film
    • Certificate: RoHS
  • Reference standard: GB/T14472-1998 (1CE60384-14)
  • Climatic category: 40, 100 and 21
  • Rated voltage: 280V AC
  • Capacity range: 0.0022 to 4.7μF
  • Capacity tolerance: ±5, 10 and 20%
  • Voltage resistance: 4.3Vr (5 seconds)
  • Dissipation factors:
    • ≤0.15% CR: ≤1.0μF
    • ≤0.3% CR: 1.0μF (20˚C, 10kHz)
  • Insulation resistance:
    • ≥30,000 seconds (CR ≤0.33°F)
    • ≥10,000 seconds (CR ≥0.33°F)
  • ≤0.15% CR: ≤1.0μF
  • ≤0.3% CR: 1.0μF (20˚C, 10kHz)
  • ≥30,000 seconds (CR ≤0.33°F)
  • ≥10,000 seconds (CR ≥0.33°F)
  • Box type provides identical outer appearance
  • Very low-loss at high-frequency and suitable for high-current
  • High-insulation resistance and long lifespan due to self-healing effect
  • Withstanding 2.5kV impulse voltage and class Y2
  • As an across line type noise suppression capacitor
  • Suitable for AC purpose
  • Non-inductively wound with metalized polypropylene film
  • Certificate: RoHS
