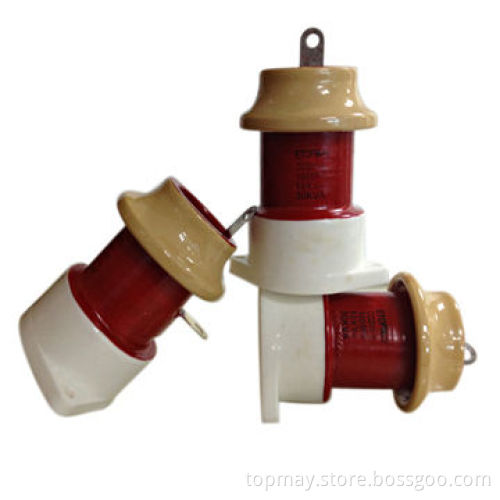

CCG11-1 Bottle-shaped High Power Ceramic Capacitor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Technical parameters:

Typical dissipation factor: ≤0.0008
Volume resistivity: ≥10000MΩ
Permissible variation of rated capacitance: K（+/-10%）
Temperature range: -40/+85/04
Rated temperature: +85℃
Maximum relative humidity: 75%
Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV

Typical dissipation factor: ≤0.0008

Volume resistivity: ≥10000MΩ

Permissible variation of rated capacitance: K（+/-10%）

Temperature range: -40/+85/04

Rated temperature: +85℃

Maximum relative humidity: 75%

Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV
