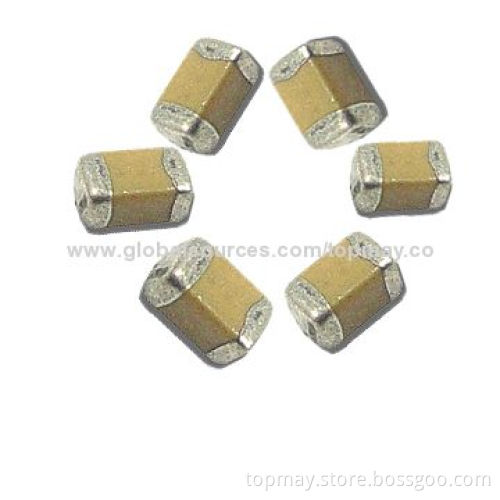

Ceramic Capacitor with 100V DC Rated Voltage and 0.15% Dissipation FactorNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Capacitance range: 0R5 to 104

Insulation resistance: C ≤10nF, R ≥10,000MQC, ≥10nFand CR ≥100 seconds

With standing voltage: 2.5 times of working voltage

Dissipation factor: 0.15% (maximum) (20˚C, 1MHz, and 1VDC)

Rated voltages: 25, 50, 63, and 100V DC

Capacitance tolerance:

Life test: 200% rated voltage at 125˚C and 1,000hours

Solder ability: SJ/10211 to 91 4.11

Resistance to soldering heat: SJ/T10211-91 4.10

Mechanical test: SJ/T10211-91 4.9

Temperature cycling: SJ/T10211-91 4.12

Moisture resistance: SJ/T10211-91 4.14

Termination adhesion strength: SJ/T10211-91 4.9

NPO (COG) ultra-stable class I dielectric

With predictable change of electrical properties on temperature

Voltage, frequency and time used in circuits requiring stable performance

B: ±0.1pF

C: ±0.25pF

D: ±0.5pF
