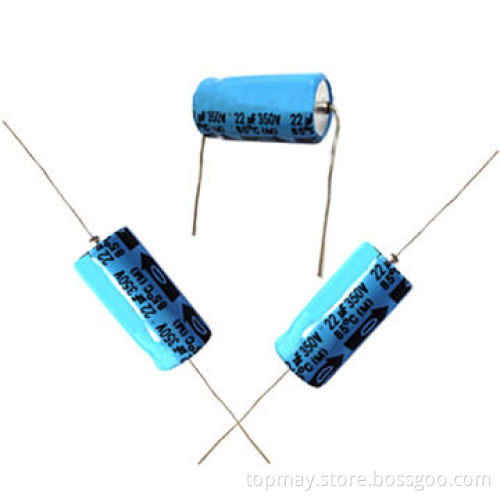

Aluminum Electrolytic Capacitors, Suitable for Circuits and Car Radios with 6.3 to 100V VoltageNew
  • Aluminum Electrolytic Capacitors, Suitable for Circuits and Car Radios with 6.3 to 100V VoltageNew
  • Aluminum Electrolytic Capacitors, Suitable for Circuits and Car Radios with 6.3 to 100V VoltageNew
Aluminum Electrolytic Capacitors, Suitable for Circuits and Car Radios with 6.3 to 100V VoltageNew
Aluminum Electrolytic Capacitors, Suitable for Circuits and Car Radios with 6.3 to 100V VoltageNew

Aluminum Electrolytic Capacitors, Suitable for Circuits and Car Radios with 6.3 to 100V VoltageNew

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Operating temperatures: -40 to 105°C
    • Rated voltages: 6.3 to 100V
    • Nominal capacitance range: 0.47 to 10,000uF
    • Capacitance tolerance: ±20% (M) (120Hz, 25°C)
    • Leakage current (25°C): I ≤0.03 CV 3uA (after 5minutes application)
    • Dissipation factors (Tand) (25°C, 120Hz):
      • WV, 6.3, 10, 16, 25, 35, 50, 63 and 100
      • Tand: 0.35, 0.30, 0.25, 0.25, 0.23, 0.20, 0.20 and 0.20
    • Loading lifespan: after 1,000 hours application of WV at 85°C
    • Capacitance change: ≤±25% of initial specified value
    • Dissipation factor: ≤±200% of initial specified value
    • Leakage current: ≤±200% of initial specified value
  • Features:
    • Load lifespan: 2,000 hours at 105°C
    • Axial standard typical
    • Case size larger than 6.3mm diameter has safety vent on rubber band
  • Operating temperatures: -40 to 105°C
  • Rated voltages: 6.3 to 100V
  • Nominal capacitance range: 0.47 to 10,000uF
  • Capacitance tolerance: ±20% (M) (120Hz, 25°C)
  • Leakage current (25°C): I ≤0.03 CV 3uA (after 5minutes application)
  • Dissipation factors (Tand) (25°C, 120Hz):
    • WV, 6.3, 10, 16, 25, 35, 50, 63 and 100
    • Tand: 0.35, 0.30, 0.25, 0.25, 0.23, 0.20, 0.20 and 0.20
  • Loading lifespan: after 1,000 hours application of WV at 85°C
  • Capacitance change: ≤±25% of initial specified value
  • Dissipation factor: ≤±200% of initial specified value
  • Leakage current: ≤±200% of initial specified value
  • WV, 6.3, 10, 16, 25, 35, 50, 63 and 100
  • Tand: 0.35, 0.30, 0.25, 0.25, 0.23, 0.20, 0.20 and 0.20
  • Load lifespan: 2,000 hours at 105°C
  • Axial standard typical
  • Case size larger than 6.3mm diameter has safety vent on rubber band
