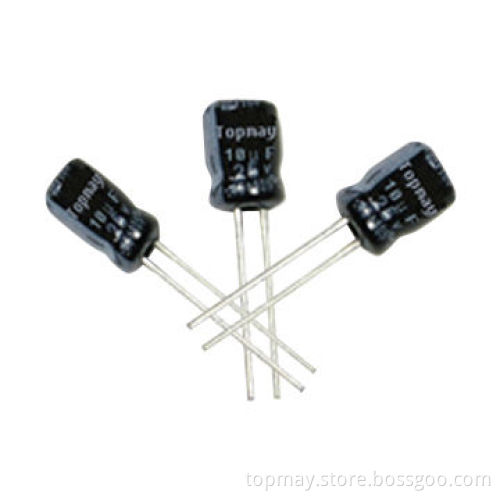

4 to 450V Aluminum Electrolytic Capacitor with ±40 to 105°C Operating Temperature RangeNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Operating temperatures:

Rated voltage: 4 to 450V

Nominal capacitance range: 0.1 to 470uF

Capacitance tolerance: ±20% (20°C, 120Hz)

Leakage current: UR ≥100V: I ≥0. 01 CR UR (UA) or 3uA (whichever is greater) 2 minutes

After UR ≥160V: I ≥0.03 CR UR +10 (uA) 2 minutes after

Dissipation factor (25°C, 120Hz):

Over 1,000uF, 0.02 is added to every 1,000uF increase

Load lifespan: after applied rated voltage for 1,000 hours at +105°C, at C ≥± 25% of initial value

TGD ≥200% of specified value and IL ≥ specified value

Shelf lifespan: after shelf for 500 hours (without voltage applied) at +105°C, then restored for 24 hours inside the room

Temperature: at C ≥± 25% of initial value, TGD ≥ 200% of specified value, IL ≥ specified

Stable and reliable performances

Suitable for electronic circuits for coupling, decoupling bypass and filtering

With RoHS mark

±40 to 105°C (6.3 to 100V)

±25 to 105°C (160 to 450V)

UR: 6.3, 10, 16, 25, 35, 50, 63, 100, 160 to 250 and 350 to 450V

TGD: 0.22, 0.19, 0.16, 0.14, 0.12, 0.10, 0.09, 0.08, 0.15 and 0.20
