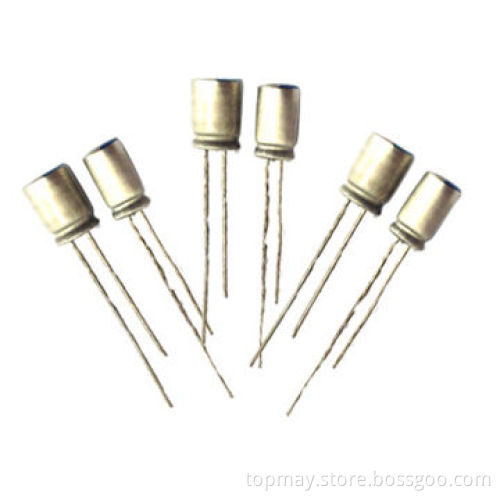

Conductive Polymer Aluminum Solid Capacitor (RP Series), 16V DC Rated VoltageNew

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Descriptions:

Scope: this specification covers polarized aluminum electrolytic capacitors with solid electrolyte for use in electronic equipment
Reference standard: JISC 5101-4-2 1998 aluminum electrolytic capacitors with solid electrolyte

Performance:

Capacitance tolerance: ±20% (120Hz, 20℃)
Operating temperature range: -55-105℃
Rated voltage: 16V DC
Surge voltage: 18.4V DC
Dissipation factor (tan δ): 0.12
Measurement frequency: 120Hz, temperature: 25 ±10℃
Measurement voltage: no more than 0.5Vrms + 2.1-2.5V DC
ESR: 12mΩ
Measurement frequency: 100-300kHz ±10%
Leakage current:
- The rated voltage shall be applied between terminals of capacitor such that the terminal voltage will reach the rated voltage within two minute and the leakage current shall be measured at following time after the voltage has reached the rated voltage across a 1,000 ±10Ω series protection resistor
- Then the current value shall not be exceed value calculated from following formula
Rated: 16V/270uF LC (2 minutes), 864uA
Temperature characteristics:
- Measurement impedance at +20 ±2℃, 100kHz ±20%
- Measurement impedance at -25 ±2℃, 100kHz ±20%
- Measurement impedance at -55 ±2℃, 100kHz ±20%
- Impedance ratio of the -25 and -55℃ values to the +20℃ value shall be not exceed the following values Z (-25℃)/Z (+20℃) 1.15, Z (-55℃)/Z (+20℃) 1.25
Endurance (load lifespan test)
Capacitors shall be applied the rated voltage continuously through 1,000Ω series protective resistor at 105 ±2℃ for 2,000 hours
After the test and returned in standard condition for 1-2 hours

Scope: this specification covers polarized aluminum electrolytic capacitors with solid electrolyte for use in electronic equipment

Reference standard: JISC 5101-4-2 1998 aluminum electrolytic capacitors with solid electrolyte

Capacitance tolerance: ±20% (120Hz, 20℃)

Operating temperature range: -55-105℃

Rated voltage: 16V DC

Surge voltage: 18.4V DC

Dissipation factor (tan δ): 0.12

Measurement frequency: 120Hz, temperature: 25 ±10℃

Measurement voltage: no more than 0.5Vrms + 2.1-2.5V DC

ESR: 12mΩ

Measurement frequency: 100-300kHz ±10%

Leakage current:

The rated voltage shall be applied between terminals of capacitor such that the terminal voltage will reach the rated voltage within two minute and the leakage current shall be measured at following time after the voltage has reached the rated voltage across a 1,000 ±10Ω series protection resistor
Then the current value shall not be exceed value calculated from following formula

Rated: 16V/270uF LC (2 minutes), 864uA

Temperature characteristics:

Measurement impedance at +20 ±2℃, 100kHz ±20%
Measurement impedance at -25 ±2℃, 100kHz ±20%
Measurement impedance at -55 ±2℃, 100kHz ±20%
Impedance ratio of the -25 and -55℃ values to the +20℃ value shall be not exceed the following values Z (-25℃)/Z (+20℃) 1.15, Z (-55℃)/Z (+20℃) 1.25

Endurance (load lifespan test)

Capacitors shall be applied the rated voltage continuously through 1,000Ω series protective resistor at 105 ±2℃ for 2,000 hours

After the test and returned in standard condition for 1-2 hours

The rated voltage shall be applied between terminals of capacitor such that the terminal voltage will reach the rated voltage within two minute and the leakage current shall be measured at following time after the voltage has reached the rated voltage across a 1,000 ±10Ω series protection resistor

Then the current value shall not be exceed value calculated from following formula

Measurement impedance at +20 ±2℃, 100kHz ±20%

Measurement impedance at -25 ±2℃, 100kHz ±20%

Measurement impedance at -55 ±2℃, 100kHz ±20%

Impedance ratio of the -25 and -55℃ values to the +20℃ value shall be not exceed the following values Z (-25℃)/Z (+20℃) 1.15, Z (-55℃)/Z (+20℃) 1.25
