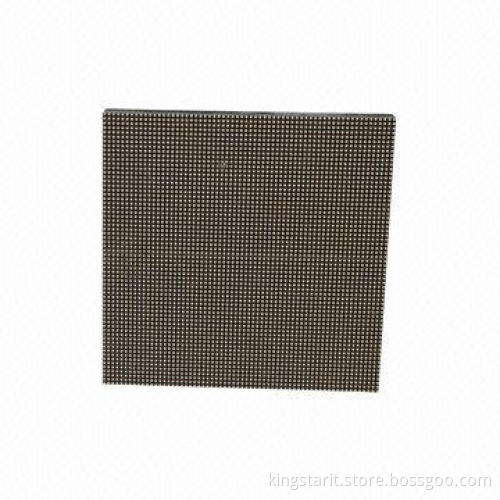

Indoor LED Display with Excellent Screen and Customization, 576 x 576 x 100mm Size, 64P Resolution

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Dot pitch: 3mm
Configure: 1R1G1B
Pixel/SQM: 111, 111-pixel/m²
LED lamp type: 2020 SMD
Chip brand: Epistar
Wavelength and brightness:
- Red: 620-622.5nm, >220mcd
- Green: 520-522.5nm, >480mcd
- Blue: 465-467.5nm, >70mcd
Module:
- Resolution: 64 pixels
- Drive mode: constant current drive
- Scanning method: 1/16 scanning
- Dimensions (W x H): 192 x 192mm
- Drive IC: MBI5024 (or other similar IC)
- LED and drive composition: light-drive separation
- Refresh rate: >1,000Hz
Cabinet:
- Thickness: 100mm
- Construction: simple cabinet
- Assembly: connecting sheet
- Color (front/back): black
- Aviation plug: WP20
- Maintenance mode: back
- Material: Spcc1.5
- Dimensions: 576 x 576 x 100mm
- Power supply: china power supply
LED screen:
- Viewing angle (H x V): 120°
- Brightness: >4,500cd/m²
- Best viewing distance: 3-15m
- LED lifespan: 100,000 hours
- Maximum power: 2,000W/m²
- Average power: 700W/m²
- Input voltage: 220 ±10 or 110V ±10%
- Operating environment temperature: -20-60°C
- Humidity: 10-95% RH
- Protection grade: IP30
- LED screen weight: 35kg/m²

Dot pitch: 3mm

Configure: 1R1G1B

Pixel/SQM: 111, 111-pixel/m²

LED lamp type: 2020 SMD

Chip brand: Epistar

Wavelength and brightness:

Red: 620-622.5nm, >220mcd
Green: 520-522.5nm, >480mcd
Blue: 465-467.5nm, >70mcd

Module:

Resolution: 64 pixels
Drive mode: constant current drive
Scanning method: 1/16 scanning
Dimensions (W x H): 192 x 192mm
Drive IC: MBI5024 (or other similar IC)
LED and drive composition: light-drive separation
Refresh rate: >1,000Hz

Cabinet:

Thickness: 100mm
Construction: simple cabinet
Assembly: connecting sheet
Color (front/back): black
Aviation plug: WP20
Maintenance mode: back
Material: Spcc1.5
Dimensions: 576 x 576 x 100mm
Power supply: china power supply

LED screen:

Viewing angle (H x V): 120°
Brightness: >4,500cd/m²
Best viewing distance: 3-15m
LED lifespan: 100,000 hours
Maximum power: 2,000W/m²
Average power: 700W/m²
Input voltage: 220 ±10 or 110V ±10%
Operating environment temperature: -20-60°C
Humidity: 10-95% RH
Protection grade: IP30
LED screen weight: 35kg/m²

Red: 620-622.5nm, >220mcd

Green: 520-522.5nm, >480mcd

Blue: 465-467.5nm, >70mcd

Resolution: 64 pixels

Drive mode: constant current drive

Scanning method: 1/16 scanning

Dimensions (W x H): 192 x 192mm

Drive IC: MBI5024 (or other similar IC)

LED and drive composition: light-drive separation

Refresh rate: >1,000Hz

Thickness: 100mm

Construction: simple cabinet

Assembly: connecting sheet

Color (front/back): black

Aviation plug: WP20

Maintenance mode: back

Material: Spcc1.5

Dimensions: 576 x 576 x 100mm

Power supply: china power supply

Viewing angle (H x V): 120°

Brightness: >4,500cd/m²

Best viewing distance: 3-15m

LED lifespan: 100,000 hours

Maximum power: 2,000W/m²

Average power: 700W/m²

Input voltage: 220 ±10 or 110V ±10%

Operating environment temperature: -20-60°C

Humidity: 10-95% RH

Protection grade: IP30

LED screen weight: 35kg/m²
