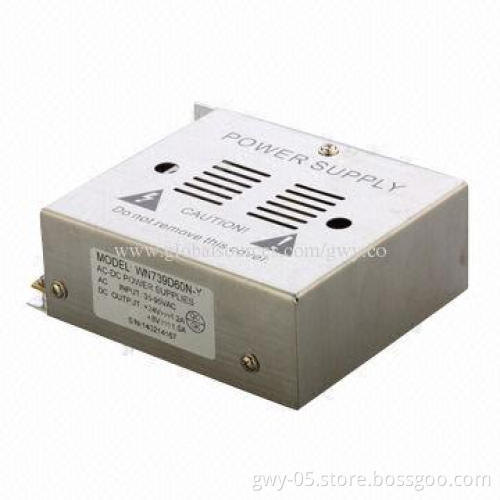

48W Switch Power Supply, Measures 114x 93 x 39mm
  • 48W Switch Power Supply, Measures 114x 93 x 39mm
48W Switch Power Supply, Measures 114x 93 x 39mm

48W Switch Power Supply, Measures 114x 93 x 39mm

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Universal input voltages: 85-264V AC
  • 105℃ long life capacitance
  • Protections: short-circuit, overload, over-voltage
  • High-efficiency, long life, high-reliability
  • Apply to work under harsh conditions
  • Low-standby power consumption to meet the energy requirements
  • 100% full load burn-in test
  • Input voltage/frequency range: 85~264VAC/47~63Hz
  • Output voltage regulation range: ±5%
  • Operating temperature/cooling method range: -20-70℃
  • Overload protection range: 105-150%
  • Over-voltage protection range: 115-150%
  • Output start/hold time: ton ≤1S, Td≥ 20mS at 230V AC
  • Vibration range: 10-500Hz, 2G 10min/1 cycle, periled for 60m
  • Each along X, Y, Z-axes
  • Insulating strength: IP-OP 3KV AC, IP-FG 1.5KV AC, OP-FG 0.5KV AC, 1m
  • Safety standard: IEC/EN/UL/CSA 60950 Gb4943
  • EMC standard: EN61000-4-2, 3, 4, 5, 6, 8, 11,  EN61000-3-2, 3, EN55022 class B
  • Dimensions: 114x93x39mm
  • The features and parameters above apply to the model as follow:
