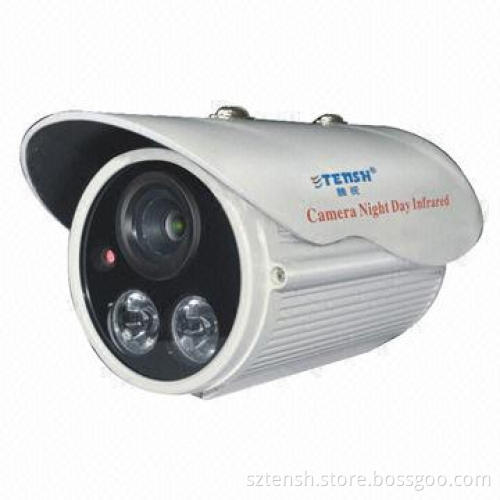

600TVL High-definition IR Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Color high-sensitivity CCD image sensor, it shows the superior image effects
High-resolution, BLC, AGC, AWB and mirror function
The housing is made of special material
Waterproof level: IP65
The fourth generation of IR array illumination, which can improve the photoelectric conversion efficiency
IR LED lifespan: more than five years and night vision has an effective result
Uses accurate constant current source technology
The LED board is designed to separate from the control circuit board, to make it more stable
High-power lighting protection circuit, to make the CCD board more stable
The CCD board is designed by two-PCB boards, every PCB board has four-layer circuit, to make it strong

Specifications:

Image sensor: 1/3 color Sony CCD
CCD total pixels:
- PAL (H x V): 752 x 582 pixels
- NTSC (H x V): 786 x 494 pixels
Scanning systems: PAL/NTSC
Sync system: internal
Minimum illumination: 1 F1.2/0 Lux (IR on)
Resolution: 600TVL
Lens: MTV3.6 to 16mm optionally
IR distance range: 0 to 80m
IR LED: 2 pieces
WBC: auto
AG: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto-iris: electronic shutter
Mirror function: on/off optional
BLC: on/off optional
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20 to 50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurements: 135 x 75 x 70mm
