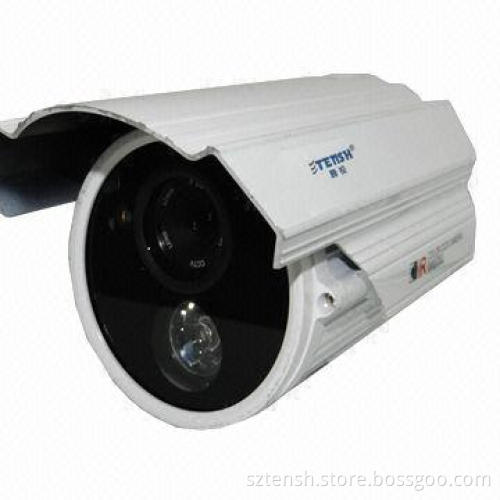

450TVL White Light IR Array Type Dual-core Camera Series

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Color high-sensitivity CCD image sensor, it shows the superior image effects

High-resolution, BLC, AGC, AWB, mirror function

The housing is made by special material, waterproof up to IP 65 level

The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency

The IR LED lifetime more than five years and night vision has an effective result

Use accurate constant current source technology, the LED board is designed to separate

from the control circuit board, to make it more stability

High-power lighting protection circuit, to make the CCD board more stability

The CCD board is designed by two PCB boards, every PCB board has of

our layers circuit, to make it work strengthen

Image sensor: 1/3-inch color Sony CCD

CCD total pixels:

Scanning system: PAL/NTSC

Sync system: internal

Minimum ilumination: 1 Lux/F1.2/0 Lux (IR-on)

Resolution: 450TVL

Lens: 1 Lux/F 1.4/0 Lux 8mm optionally

IR distance: 0 to 40m

IR LEDs: 1 piece

WBC: 1/50 to 1/100,000 auto

AG: AGC

S/N ratio: ≥48dB

Exposure time: auto

Auto-iris: electronic shutter

Mirror function: on/off optionally

BLC: on/off optionally

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperature: -20 to -50℃

Working humidity: 85% RH

Power supply: 12V DC

Power consumption: ≤1000mA

Measurement: 170 x 102 x 90mm

PAL (H x V): 542 x 582 pixels

NTSC (H x V): 542 x 582 pixels
