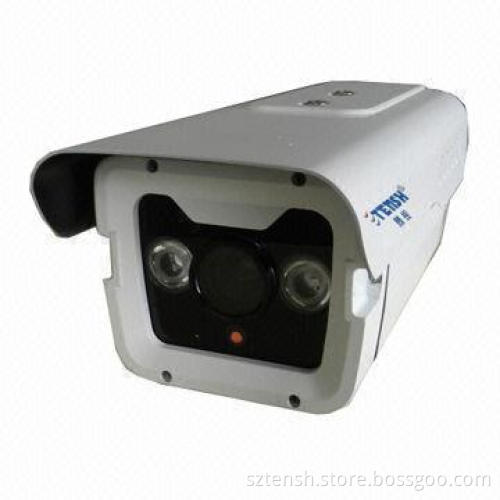

800TVL High-definition Camera Series with High-power Lighting Protection Circuit

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Color high-sensitivity CCD image sensor, it shows the superior image effects
High-resolution, BLC, AGC, AWB, mirror function
The housing is made by special material, waterproof up to IP65 level
The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency
The IR LED lifetime more than five years and night vision has an effective result
Use accurate constant current source technology, the LED board is designed to separate
from the control circuit board, to make it more stability
High-power lighting protection circuit, to make the CCD board more stability

Specifications:

Image sensor: 1/3-inch color Sony CCD
CCD total pixels:
- PAL (H x V): 720 x 480 pixels
- NTSC (H x V): 720 x 480 pixels
Scanning system: PAL/NTSC
Sync system: internal
Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
Resolution: 800TVL
Lens: MTV3 6 to 25mm optionally
IR distance: 0 to 80m
IR LEDs: 2 pieces
WBC: 1/50 to 1/100,000 seconds auto
AG: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto-iris: electronic shutter
Mirror function: on/off optionally
BLC: on/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperature: -20 to -50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurement: 270 x 110 x 130mm
