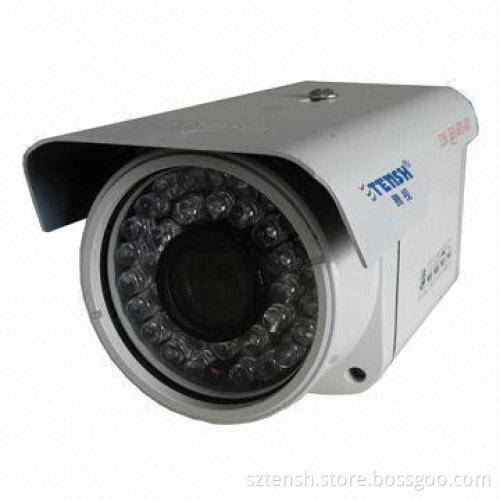

600TVL High-definition IR Camera Series with 12V DC Power Supply
  • 600TVL High-definition IR Camera Series with 12V DC Power Supply
600TVL High-definition IR Camera Series with 12V DC Power Supply

600TVL High-definition IR Camera Series with 12V DC Power Supply

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Color high-sensitivity CCD image sensor, it shows the superior image effects
    • High-resolution, BLC, AGC, AWB, mirror function
    • The housing is made by special material, waterproof up to IP 65 level
    • The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency
    • The IR LED lifetime more than five years and night vision has an effective result
    • Use accurate constant current source technology, the LED board is designed to separate
    • from the control circuit board, to make it more stability
    • High-power lighting protection circuit, to make the CCD bord more stability
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen
    • Image sensor: 1/3 color Sony CCD
  • Specifications:
    • CCD total pixel:
      • Pixel (H x V): 752 x 582
      • N (H x V): 786 x 494
    • Scanning system: PAL/NTSC
    • Sync system: internal
    • Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
    • Resolution: 600TVL
    • Lens: MTV3, 6 to 16mm optionally
    • IR distance: 0 to 60m
    • IR LED: ∮8/36-piece
    • WBC: auto
    • AG: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto iris: electronic shutter
    • Mirror function: on/off optionally
    • BLC: on/off optionally
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 to -50℃
    • Working humidity: 85% RH
    • Power supply: 12V DC
    • Power consumption: ≤450mA
    • Measurement: 160 x 83 x 79mm
  • Color high-sensitivity CCD image sensor, it shows the superior image effects
  • High-resolution, BLC, AGC, AWB, mirror function
  • The housing is made by special material, waterproof up to IP 65 level
  • The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency
  • The IR LED lifetime more than five years and night vision has an effective result
  • Use accurate constant current source technology, the LED board is designed to separate
  • from the control circuit board, to make it more stability
  • High-power lighting protection circuit, to make the CCD bord more stability
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen
  • Image sensor: 1/3 color Sony CCD
  • CCD total pixel:
    • Pixel (H x V): 752 x 582
    • N (H x V): 786 x 494
  • Scanning system: PAL/NTSC
  • Sync system: internal
  • Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
  • Resolution: 600TVL
  • Lens: MTV3, 6 to 16mm optionally
  • IR distance: 0 to 60m
  • IR LED: ∮8/36-piece
  • WBC: auto
  • AG: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto iris: electronic shutter
  • Mirror function: on/off optionally
  • BLC: on/off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 to -50℃
  • Working humidity: 85% RH
  • Power supply: 12V DC
  • Power consumption: ≤450mA
  • Measurement: 160 x 83 x 79mm
  • Pixel (H x V): 752 x 582
  • N (H x V): 786 x 494
