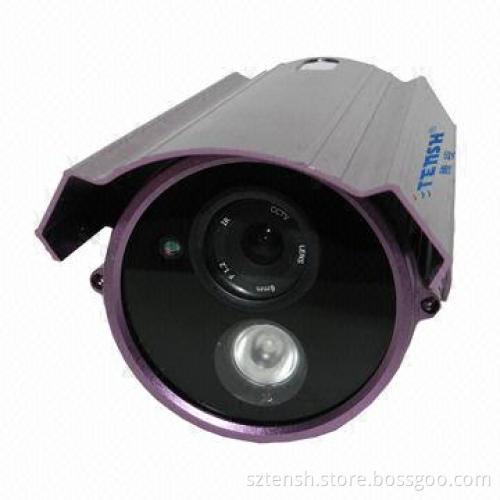

450TVL IR Array Type Dual-core Camera Series, 1/3-inch Color Sony CCD

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Image sensor: 1/3-inch color Sony CCD
CCD total pixels:
- PAL (H x V): 542 x 582 pixels
- NTSC (H x V): 542 x 582 pixels
Scanning system: PAL/NTSC
Synchronization system: internal
Minimum illumination: 1 Lux F1.2/0 Lux (IR-on)
Resolution: 450TVL
Lens: 1 Lux F1.4/0 Lux 8mm optionally
IR distance: 0 to 40m
IR LED: 1 piece
WBC: 1/50 to 1/100,000 seconds (automatic)
AG: AGC
S/N ratio: ≥48dB
Exposure time: automatic
Auto-iris: electronic shutter
Mirror functions: on/off optionally
BLC: on/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperature: -20 to 50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤1,000mA
Measurement: 170 x 102 x 90mm

Features:

Color high-sensitivity CCD image sensor, it shows the superior image effects
High-resolution, BLC, AGC, AWB, mirror function
The housing is made by special material, waterproof up to IP65 level
The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency
The IR LED lifetime more than five years and night vision has an effective result
Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
High-power lighting protection circuit, to make the CCD board more stability
The CCD board is designed by two PCB boards, every PCB board has of our layers circuit, to make it work strengthen

Image sensor: 1/3-inch color Sony CCD

CCD total pixels:
