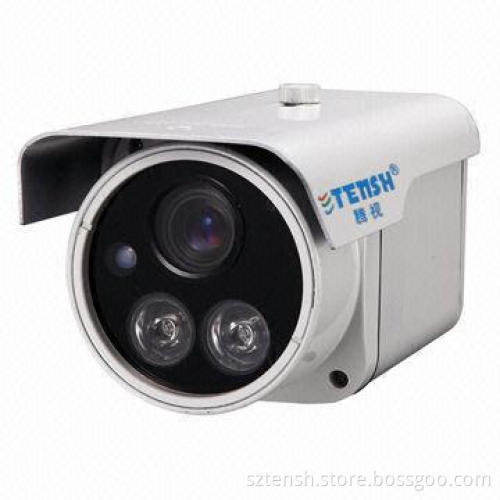

700TVL High-resolution Daul-core Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Feature

Color high-sensitivity CCD image sensor, it shows the superior image effects
The housing is made by special material, waterproof level up to IP65
The fourth generation of IR array illumination, which can improve the photoelectric conversion efficiency
The IR LED lifetime more than five years and night vision has an effective result
Uses accurate constant current source technology
LED board is designed to separate from the control circuit board, to make it more stable
High-power lighting protection circuit, to make the CCD board more stable
The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it stronger
Image sensor: 1/3-inch color Sony CCD
CCD total pixels (H x V):
- P: 976 x 582 pixels
- N: 976 x 794 pixels
Scanning system: PAL/NTSC
Sync system: internal
Minimum illumination: 1 Lux F1.2/0 (IR-on)
Resolution: 700TVL
Lens: F1.2/8mm
IR distance: 80m
IR LEDs: 2 pieces
WBC: auto
AG: AGC
S/N Ratio: ≥48dB
Exposure time: auto
Auto-iris: electronic shutter
Mirror function: on/off optionally
BLC: on/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20 to 50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurements: 200 x 106 x 95mm
