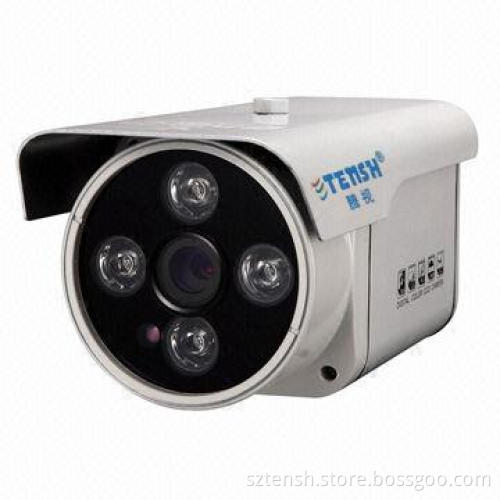

700TVL High-resolution Dual-core Camera Series, Measurement 260 x 125 x 112mm
  • 700TVL High-resolution Dual-core Camera Series, Measurement 260 x 125 x 112mm
700TVL High-resolution Dual-core Camera Series, Measurement 260 x 125 x 112mm

700TVL High-resolution Dual-core Camera Series, Measurement 260 x 125 x 112mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Color high-sensitivity CCD image sensor, it shows the superior image effects
    • High-resolution, BLC, AGC, AWB, mirror functions
    • The housing is made by special material, waterproof up to IP65 level
    • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
    • The IR LED lifetime more than five years and night vision has an effective result
    • Used accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
    • High-power lighting protection circuit, to make the CCD board more stability
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it working strengthen
  • Specifications:
    • Image sensor: 1/3-inch color Sony CCD
    • CCD total pixels:
      • PAL (H x V): 976 x 582
      • NTSC (H x V): 976 x 794
    • Scanning system: PAL/NTSC
    • Sync system: internal
    • Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
    • Resolution: 700TVL
    • Lens: F1.2/16mm
    • IR distance: 120m
    • IR LEDs: 4 pieces
    • WBC: auto
    • AG: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto iris: electronic shutter
    • Mirror function: on/off (optional)
    • BLC: on/off (optional)
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 to 50℃
    • Working humidity: 85% RH
    • Power supply: 12V DC
    • Power consumption: ≤450mA
    • Measurement: 260 x 125 x 112mm
  • Color high-sensitivity CCD image sensor, it shows the superior image effects
  • High-resolution, BLC, AGC, AWB, mirror functions
  • The housing is made by special material, waterproof up to IP65 level
  • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
  • The IR LED lifetime more than five years and night vision has an effective result
  • Used accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
  • High-power lighting protection circuit, to make the CCD board more stability
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it working strengthen
  • Image sensor: 1/3-inch color Sony CCD
  • CCD total pixels:
    • PAL (H x V): 976 x 582
    • NTSC (H x V): 976 x 794
  • Scanning system: PAL/NTSC
  • Sync system: internal
  • Minimum illumination: 1 Lux F1.2/0 Lux (IR on)
  • Resolution: 700TVL
  • Lens: F1.2/16mm
  • IR distance: 120m
  • IR LEDs: 4 pieces
  • WBC: auto
  • AG: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto iris: electronic shutter
  • Mirror function: on/off (optional)
  • BLC: on/off (optional)
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 to 50℃
  • Working humidity: 85% RH
  • Power supply: 12V DC
  • Power consumption: ≤450mA
  • Measurement: 260 x 125 x 112mm
  • PAL (H x V): 976 x 582
  • NTSC (H x V): 976 x 794
