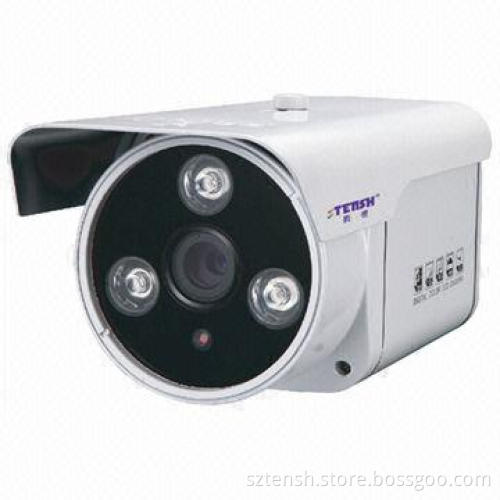

700TVL Array III Dual-core Camera

Get Latest Price

Payment Type:: Advance T/T or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

Color high sensitivity CCD image sensor, it shows the superior image effects
High resolution, BLC, AGC, AWB, mirror function
The housing is made by special material, waterproof up to IP 66 level
The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency. The IR LED lifetime more than five years and night vision has an effective result
Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
High power lighting protection circuit, to make the CCD Bord more stability
The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strengthen

Specifications:

Model: TS--S4600S, TS—S3600S and TS—S2600S
Image sensor: 1/3 color Sony CCD
CCD total pixel: P: 976(H) x 582(V) and N: 976(H) x 494(v)
Scanning system: PAL/NTSC
Sync system: Internal
Minimum illumination: 1lux F1.2/0lux(IR ON)
Resolution: 700TVL
Lens: F1.2/16mm, F1.2/12mm and F1.2/8MM
IR distances: 0—120M, 0—80M and 0—40M
IR LED: 4pcs, 3pcs and 2pcs
WBC: Auto
AGC: AGC
S/N ratio: ≥48db
Exposure time: Auto
Auto iris: Electronic shutter
Mirror function: ON/OFF optionally
BLC: ON/OFF optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20℃-50℃
Working humidity: 85%RH
Power supply: DC 12V
Power consumption: ≤450mA
Measurement: 260 x 125 x x112mm and 200 x 106 x 95mm
