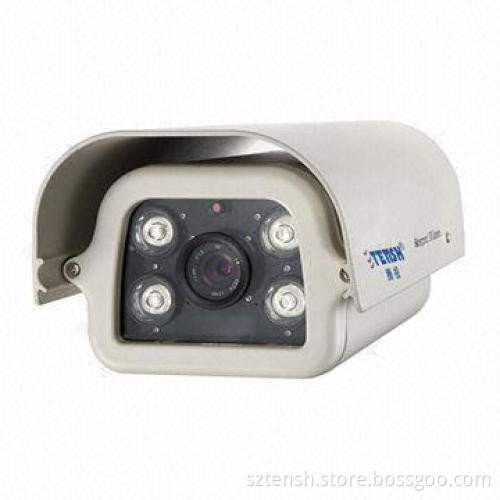

IR dual-core camera series

Get Latest Price

Payment Type:: Advance T/T or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

Color high sensitivity CCD image sensor, it shows the superior image effects
High resolution, BLC, AGC, AWB, Mirror function
The housing is made by special material, waterproof up to IP 66 level
The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency. The IR LED lifetime more than five years and night vision has an effective result
Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
High power lighting protection circuit, to make the CCD board more stability
The CCD board is designed by two PCB boards,every PCB board has four layers circuit, to make it work strengthen

Image sensor:

1/3 Color Sony CCD
CCD total pixel
P: 542(H) x 582(V)
N: 752(H) x 582(v)

Scanning system: PAL/NTSC

Sync system: Internal

Minimum illumination: 1lux F1.2/0lux(IR ON)

Resolution: 450TVL

Lens:

F1.4/16MM
F1.4/12MM
F1.4/8MM

IR distance:

0—120M
0—80M
0—40M

IR LED:

4pcs
2pcs
1pcs

WBC:

Auto
AGC
AGC

S/N ratio: ≥48db

Exposure time

Auto:

Auto iris
Electronic shutter

Mirror function

ON/OFF optionally
BLC
ON/OFF optionally

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperatures: -20℃ - 50℃

Working humidity: 85%RH

Power supply: DC 12V

Power consumption: ≤450mA

Measurement:

330 x 155 x 110mm
330 x 155 x 110mm
158 x 96 x 96mm
