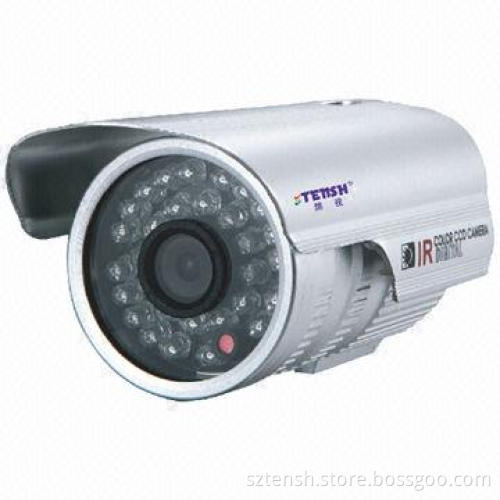

Normally waterproof IR camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Models: TS-HF30X, TS-HF30S & TS-HF30H

Image sensor: 1/3 Sony color CCD

Total pixels: 542 (horizontal) x 582 (vertical)：

Scanning systems: PAL/NTSC

Sync system: Internal

Minimum Illumination: 0.001Lux F1.2/0LUX (Infrared on)

Horizontal resolutions: 420TVL, 420TVL and 650TVL

Lens： F1.4/4 - 16mm, MTV： 3.6 - 6mm

IR view distance: 40, 30 & 25M

White array lights quantity: ∮8/32PCS, ∮5/36PCS, ∮5/30PCS

White balance: auto

AGC: AGC

S/N ratio: ≥48dB

Exposure time： 1/50-1/100,000sec auto

Electronic shutter:

Mirror function： On/Off option

Backlight compensation: On/off (optional)

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Operation temperatures: -20 - 55℃

Working environment humidity： ≤85%RH

Power supply: DC ±12V

Power consumption: ≤450

Measurement: 160 x 103 x 90mm, 120 x 70 x 75mm

PAL: 1/50 - 1/100,000sec

NTSC: 1/60--1/100,000sec
