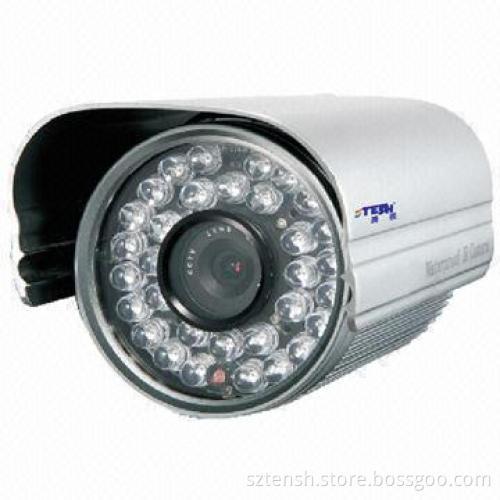

Nomally IR Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Image sensor: 1/3 Sony color CCD

Total Pixels: 542 （horizontal） x 582 （vertical）

Scanning system: PAL/NTSC

Sync system: Internal synchronous

Minimum illumination: 0.001Lux F1.2/0Lux （infrared on）

Horizontal resolution: 420TVL, 650TVL

Lens： F 1.4/4-16MM, MTV 3.6-6MM

IR view distance: 40M, 30M and 25M

White array lights quantity: ∮8/32PCS, ∮5/36PCS and ∮5/30PCS

White balance: auto

Model gain: AGC

S/N ratio: ≥48dB

Exposure time： 1/50-1/100,000sec Auto

Electronic shutter: PAL 1/50-1/100,000sec, NTSC 1/60-1/100,000sec

Mirror function： On/off option

Back-light compensation: On/off (optional)

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Operation temperatures: -20-55℃

Working environment humidity： ≤85%RH

Power supply: DC±12V

Power consumption: ≤450

Measurement: 160 x 103 x 90mm, 120 x 70 x 75mm
