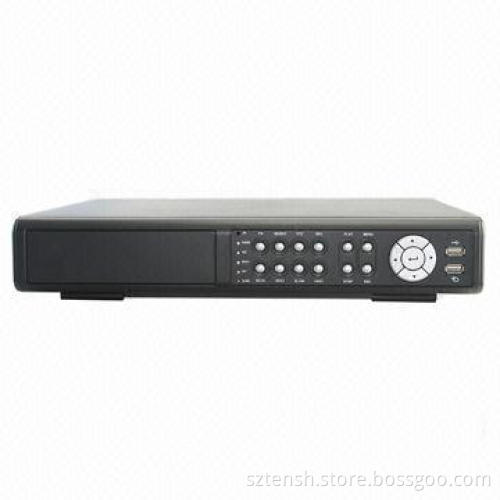

8-channel 3D1 + 5CIF Standalone DVR Manufacturer

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Supports VGA and CVBS synchronous output
Supports zoom any area selected by the mouse under PELCO-D/P PTZ control protocol
Supports one key to run recording function
Support holiday recording, snapshot setup
Support schedule snapshot, manual snapshot, alarm snapshot, FTP upload snapshot, playback and backup of the snapshot
Supports search, playback, backup the recording according to events
Supports playback, search pictures in local
Supports smart search in the self-defined areas in the playback of the recording
Supports 2 SATA ports
Support maximum 8CH CIF synchronous playback
Supports NTP (Internet timing), DHCP (automatically get IP), Email (mail service), UPNP (Universal plug-and-play)
1.2 specification

System main processor:

High-performance embedded microprocessor/GM8187
Operating system: embedded Linux operating system
Languages: English, Simplified Chinese, Traditional Chinese, Brazilian, Russian, Portuguese, Spanish, Italian, Korean, French, Czech, Hebrew, German, Finnish, Bulgarian, Swedish, Romanian, Greek and more

System resources:

Pentaplex function: live, recording, playback, backup and remote access
Control mode front panel, USB mouse, network, IR remote control
Video: input 8CH, BNC (1.0Vp-p, 75Ω)
Standard: PAL/NTSC
Output: 1 TV, BNC (1.0V p-p, 75Ω), 1 VGA
Audio: input 8CH, RCA (200 to 2800mV, 30KΩ)
Output: 1CH, RCA (200 to 3,000mV, 5KΩ)
Display split 1/4/9
Resolution: 1,440 x 900/1,360 x 768/1,280 x 1,024/1,024 x 768/800 x 600 pixels
Tour display: support
OSD: camera title, time, video loss, camera block, motion detection, recording
Recording video/audio compression: H.264/G711
Image resolution: D1 (704 x 576/704 x 480), HD1 (704 x 288/704 x 240), CIF (352 x 288/352 x 240 pixels)
Encoding speed main stream: C 1 to 3 D1 (1 to 25/30fps), CH 4 to 8 CIF(1 to 25/30fps)
Extra stream: CIF (1 to 5fps), QCIF (1 to 5fps)
Image quality 1 to 6 levels (level 6 is the best)

Supports VGA and CVBS synchronous output

Supports zoom any area selected by the mouse under PELCO-D/P PTZ control protocol

Supports one key to run recording function

Support holiday recording, snapshot setup

Support schedule snapshot, manual snapshot, alarm snapshot, FTP upload snapshot, playback and backup of the snapshot

Supports search, playback, backup the recording according to events

Supports playback, search pictures in local

Supports smart search in the self-defined areas in the playback of the recording

Supports 2 SATA ports

Support maximum 8CH CIF synchronous playback

Supports NTP (Internet timing), DHCP (automatically get IP), Email (mail service), UPNP (Universal plug-and-play)

1.2 specification

High-performance embedded microprocessor/GM8187

Operating system: embedded Linux operating system

Languages: English, Simplified Chinese, Traditional Chinese, Brazilian, Russian, Portuguese, Spanish, Italian, Korean, French, Czech, Hebrew, German, Finnish, Bulgarian, Swedish, Romanian, Greek and more

Pentaplex function: live, recording, playback, backup and remote access

Control mode front panel, USB mouse, network, IR remote control

Video: input 8CH, BNC (1.0Vp-p, 75Ω)

Standard: PAL/NTSC

Output: 1 TV, BNC (1.0V p-p, 75Ω), 1 VGA

Audio: input 8CH, RCA (200 to 2800mV, 30KΩ)

Output: 1CH, RCA (200 to 3,000mV, 5KΩ)

Display split 1/4/9

Resolution: 1,440 x 900/1,360 x 768/1,280 x 1,024/1,024 x 768/800 x 600 pixels

Tour display: support

OSD: camera title, time, video loss, camera block, motion detection, recording

Recording video/audio compression: H.264/G711
