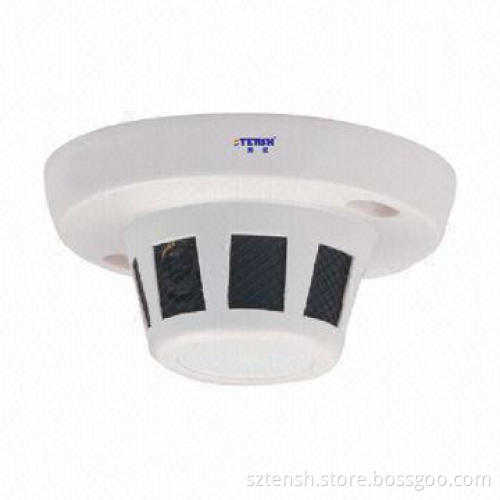

Mini camera with 48dB S/N ratio

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Model: TS-Y100X/TS-Y100S/TS-Y100H

Image sensor: 1/4 Sharp CCD, 1/3 SONY CCD, 1/3 SONY CCD

Effective pixels:

Multimedia kernel system: fixed focal length model

Signal system: PAL/NTSC

Horizontal resolution: 420/420/650TVL

Lens: 3.7/3.6mm

Minimum illumination: 1 lux

Electronic shutter:

Night vision distance: 50/40/30M

Model gain: AGC on/off, optional

Backlight compensation: on/off (optional)

White balance: auto

S/N ratio: ≥48dB

Electronic shutter：1/50-1/100,000s, auto

Automatic aperture lens: video/DC option

Mirror function: on/off, optional

Method of synchronization: internal synchronization

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Operation temperature: -10-50°C

Power supply: 12V DC

Power consumption: ≤150mA

Measurement: 60 x 28 x 100mm, 160 x 60mm

PAL: 500 x 582V, 752H x 582V

NTSC: 768 x 494V, 510H x 494V

PAL: 1/50-1/100,000s

NTSC: 1/60-1/100,000s
