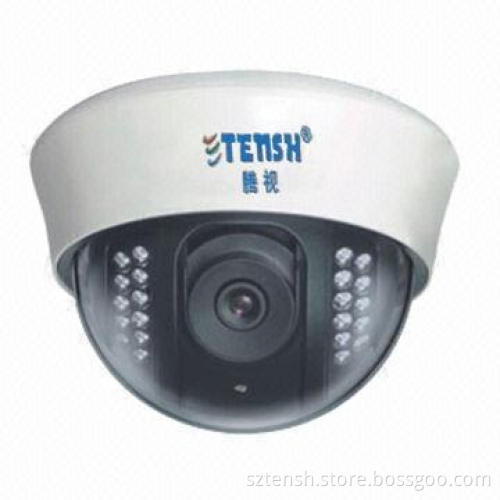

420TVL IR Dome Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Unique LED strengthened focusing light for 24-hour monitoring
LED lifespan: 60,000 hours
The base plate adopts high-quality special materials and reaches IP65 safety prevention voltage
Uses the newest IR technology, night vision will be in effect in long distance
Image sensor: 1/3-inch Sony CCD
Effective pixels:
- PAL (H x V): 500 x 582 pixels
- NTSC (H x V): 768 x 494 pixels
- 752 x 582 pixels
- 510 x 494 pixels
Scanning area: 4.9 x 3.7mm
Signal system: PAL/NTSC
Horizontal resolution: 420TVL
Lens: MTV 3.6 to 16mm
AGC: on/off optionally
BLC: on/off optionally
S/N ratio: ≥48dB
Minimum illumination: 0 Lux
IR LED: ∮5/26 pieces
Electronic shutter:
- PAL: 1/50 to 1/100,000 seconds
- NTSC: 1/60 to 1/100,000 seconds
Auto iris lens: video/DC option
WBC: automatic
Synchronous: internal
Video output: 1.0Vp-p/75Ω
Power consumption: 400mA
Working temperatures: -10 to 50 degrees Celsius
Power supply: 12V DC
IR distance: 0 to 25m
Measurements: 130 x 90mm
