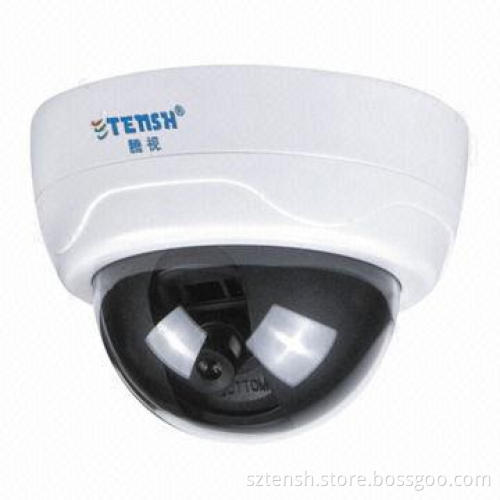

420TVL Commonly Used Dome Camera Series
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
Product Description
Product Description
- Image sensor: 1/3 Sony CCD
- Effective pixels:
- PAL (H x V): 500 x 582
- NTSC (H x V): 768 x 494
- Infrared wavelengths: 45 units 840nM
- Signal systems: PAL/NTSC
- Horizontal resolution: 420TVL
- Lens: 3.6 to 16mm optionally
- AGC: on/off optionally
- BLC: on/off optionally
- S/N ratio: =48dB
- Illumination: 1.0 Lux (minimum)
- Electronic shutter:
- PAL: 1/50 to 1/100,000 seconds
- NTSC: 1/60 to 1/100,000 seconds
- Auto iris lens: video/DC optionally
- WBC: auto
- Synchronous: internal
- Video output: 1.0Vp-p/75Ω
- Power consumption: 150mA
- Working temperatures: -10 to 50 degrees Celsius
- Power supply: 12V DC
- Measurements: 117 x 85mm
- PAL (H x V): 500 x 582
- NTSC (H x V): 768 x 494
- PAL: 1/50 to 1/100,000 seconds
- NTSC: 1/60 to 1/100,000 seconds
