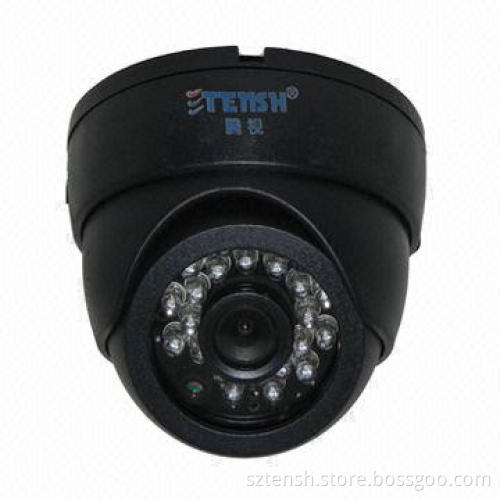

600TVL Dome High-definition IR Camera Series, Measures 75 x 94mm

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Image sensor: 1/3 color Sony CCD
CCD total pixel:
- P (H x V): 648 x 488
- N (H x V): 648 x 488
Scanning system: PAL/NTSC
Synchronization system: internal
Minimum illumination: 1 Lux F1.2/0 Lux(IR ON)
Resolution: 600TVL
Lens: MTV3.6 to 16mm optionally
IR distance: 0 to 20M
IR LED: 23 pieces
WBC: 1/50 to 1/100,000 automatic
AG: AGC
S/N ratio: ≥48dB
Exposure time: automatic
Auto iris: electronic shutter
Mirror function: on/off optionally
BLC: on/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperature: -20 to 50℃
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurement: 75 x 94mm

Features:

Color high-sensitivity CCD image sensor, it shows the superior image effects
High-resolution, BLC, AGC, AWB, mirror function
The housing is made by special material, waterproof up to IP 65 level
The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency
The IR LED lifetime more than five years and night vision has an effective result
Use accurate constant current source technology, the LED board is designed to separate
from the control circuit board, to make it more stability
High-power lighting protection circuit, to make the CCD bord more stability

Image sensor: 1/3 color Sony CCD

CCD total pixel:

P (H x V): 648 x 488
N (H x V): 648 x 488

Scanning system: PAL/NTSC

Synchronization system: internal

Minimum illumination: 1 Lux F1.2/0 Lux(IR ON)

Resolution: 600TVL

Lens: MTV3.6 to 16mm optionally

IR distance: 0 to 20M

IR LED: 23 pieces

WBC: 1/50 to 1/100,000 automatic

AG: AGC

S/N ratio: ≥48dB

Exposure time: automatic

Auto iris: electronic shutter

Mirror function: on/off optionally

BLC: on/off optionally

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperature: -20 to 50℃

Working humidity: 85% RH

Power supply: 12V DC

Power consumption: ≤450mA

Measurement: 75 x 94mm

P (H x V): 648 x 488

N (H x V): 648 x 488

Color high-sensitivity CCD image sensor, it shows the superior image effects

High-resolution, BLC, AGC, AWB, mirror function

The housing is made by special material, waterproof up to IP 65 level

The fourth generation of IR array illuminant, which can improve the photoelectric conversion efficiency

The IR LED lifetime more than five years and night vision has an effective result

Use accurate constant current source technology, the LED board is designed to separate

from the control circuit board, to make it more stability

High-power lighting protection circuit, to make the CCD bord more stability
