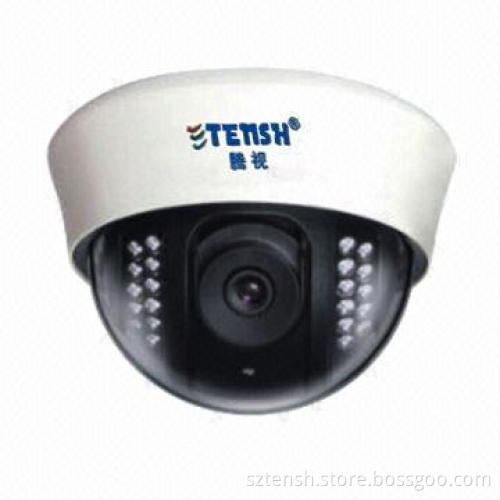

600TVL High Definition Dome Camera Series with 24m IR Distance
  • 600TVL High Definition Dome Camera Series with 24m IR Distance
600TVL High Definition Dome Camera Series with 24m IR Distance

600TVL High Definition Dome Camera Series with 24m IR Distance

Get Latest Price
Payment Type:
Advance T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advance T/T or PayPal
Product Description
Product Description
  • Features:
    • Color high sensitivity CCD image sensor, it shows the superior image effects
    • High resolution, BLC, AGC, AWB, mirror function
    • The housing is made by special material, waterproof up to IP66 level
    • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
    • The IR LED lifespan more than five years and night vision has an effective result
    • Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
    • High power lighting protection circuit, to make the CCD board more stability
  • Specifications:
    • Model: TS-IT800S-BQ26S
    • Image sensor: 1/3-inch color Sony CCD
    • CCD total pixel:
      • P: (H x V) 752 x 582
      • N: (H x V) 768 x 494
    • Sync system: internal
    • Minimum illumination: 1 lux F1.2/0 lux (IR on)
    • Resolution: 600TVL
    • Lens: 3.6 - 16mm
    • IR distance: 25m
    • IR LED: 26pcs
    • WBC: auto
    • AGC: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto iris: electronic shutter
    • Mirror function: on/off optionally
    • BLC: on/off optionally
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 - 50°C
    • Working humidity: 85% RH
    • Power supply: DC 12V
    • Power consumption: ≤450mA
    • Measurement: 160 x 83 x 79mm
  • Color high sensitivity CCD image sensor, it shows the superior image effects
  • High resolution, BLC, AGC, AWB, mirror function
  • The housing is made by special material, waterproof up to IP66 level
  • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
  • The IR LED lifespan more than five years and night vision has an effective result
  • Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stability
  • High power lighting protection circuit, to make the CCD board more stability
  • Model: TS-IT800S-BQ26S
  • Image sensor: 1/3-inch color Sony CCD
  • CCD total pixel:
    • P: (H x V) 752 x 582
    • N: (H x V) 768 x 494
  • Sync system: internal
  • Minimum illumination: 1 lux F1.2/0 lux (IR on)
  • Resolution: 600TVL
  • Lens: 3.6 - 16mm
  • IR distance: 25m
  • IR LED: 26pcs
  • WBC: auto
  • AGC: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto iris: electronic shutter
  • Mirror function: on/off optionally
  • BLC: on/off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 - 50°C
  • Working humidity: 85% RH
  • Power supply: DC 12V
  • Power consumption: ≤450mA
  • Measurement: 160 x 83 x 79mm
  • P: (H x V) 752 x 582
  • N: (H x V) 768 x 494
