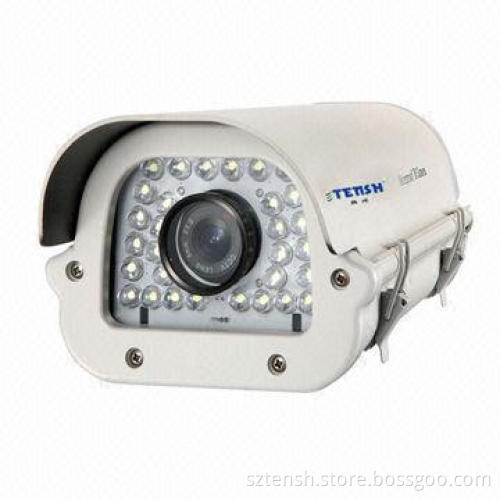

450TVL White Light Lamp CCTV Camera Series

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

White light lamp irradiation by light source
With special white light automatic modulation function, it can also show the vehicle license plate’s figure very clearly when the car lamp is on or off
The housing is made by special material, waterproof up to IP 65 level
Use accurate constant current source technology, the LED board is designed to separate from the control circuit board, to make it more stable
High power lighting protection circuit, to make the CCD board more stable
The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it strong

Specifications:

Image sensor: 1/3 color Sony CCD
CCD total pixel:
- PAL (H x V): 542 x 582
- NTSC (H x V): 542 x 582
Scanning systems: PAL/NTSC
Sync system: internal
Illumination: 1Lux F1.2/0Lux (IR on) (minimum)
Resolution: 450TVL
Lens: F1.2/16mm
IR distance: 0 to 50m
IR LED: 32 pieces
WBC: auto
AG: AGC
S/N ratio: ≥48dB
Exposure time: auto
Auto iris: electronic shutter
Mirror functions: on/off optionally
BLC: on/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20 to -50 degrees Celsius
Working humidity: 85% RH
Power supply: 12V DC
Power consumption: ≤450mA
Measurement: 390 x 138 x 100mm
