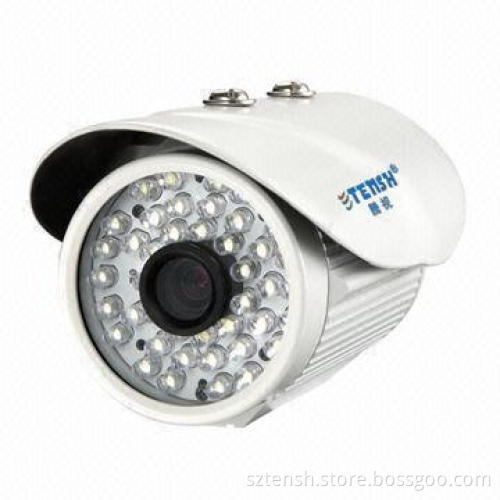

420TVL White Light Lamp CCTV Camera Series
  • 420TVL White Light Lamp CCTV Camera Series
420TVL White Light Lamp CCTV Camera Series

420TVL White Light Lamp CCTV Camera Series

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • White light lamp irradiation by light source
    • With special white light automatic modulation function, can show the vehicle license plate’s figure very clearly when the car lamp is on or off
    • The housing is made by special material, waterproof up to IP65 grade
    • Uses accurate constant current source technology
    • LED board is designed to separate from the control circuit board, to make it more stable
    • High power lighting protection circuit, to make the CCD board more stable
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strong
  • Specifications:
    • Image sensor: 1/3 color Sony CCD
    • CCD total pixel:
      • PAL (H x V): 542 x 582
      • NTSC (H x V):542 x 582
    • Scanning system: PAL/NTSC
    • Sync system: internal
    • Illumination: 1Lux F1.2/0Lux (IR on) (minimum)
    • Resolution: 420TVL
    • Lens: 1Lux F1.4/0Lux 4 to 16mm option
    • IR distance: 0 to 40m
    • IR LED: ∮8/42 pieces
    • WBC: 1/50 to 1/100000auto
    • AG: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto iris: electronic shutter
    • Mirror function: on/off option
    • BLC: on/off optionally
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 to 50 degrees Celsius
    • Working humidity: 85% RH
    • Power supply: 12V DC
    • Power consumption: ≤450mA
    • Measurement: 150 x 90 x 80mm
  • White light lamp irradiation by light source
  • With special white light automatic modulation function, can show the vehicle license plate’s figure very clearly when the car lamp is on or off
  • The housing is made by special material, waterproof up to IP65 grade
  • Uses accurate constant current source technology
  • LED board is designed to separate from the control circuit board, to make it more stable
  • High power lighting protection circuit, to make the CCD board more stable
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work strong
  • Image sensor: 1/3 color Sony CCD
  • CCD total pixel:
    • PAL (H x V): 542 x 582
    • NTSC (H x V):542 x 582
  • Scanning system: PAL/NTSC
  • Sync system: internal
  • Illumination: 1Lux F1.2/0Lux (IR on) (minimum)
  • Resolution: 420TVL
  • Lens: 1Lux F1.4/0Lux 4 to 16mm option
  • IR distance: 0 to 40m
  • IR LED: ∮8/42 pieces
  • WBC: 1/50 to 1/100000auto
  • AG: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto iris: electronic shutter
  • Mirror function: on/off option
  • BLC: on/off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 to 50 degrees Celsius
  • Working humidity: 85% RH
  • Power supply: 12V DC
  • Power consumption: ≤450mA
  • Measurement: 150 x 90 x 80mm
  • PAL (H x V): 542 x 582
  • NTSC (H x V):542 x 582
