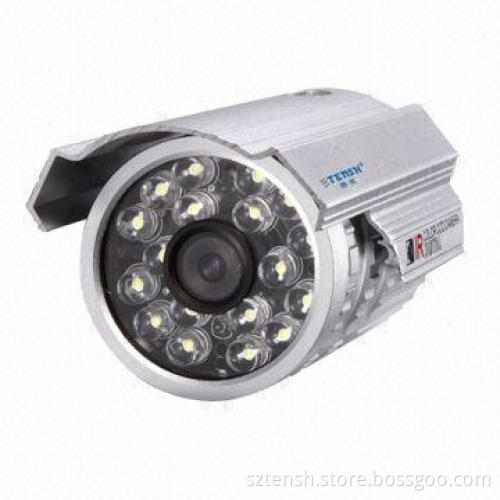

450TVL White Light, IR Camera with , Dual-core

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Color high sensitivity CCD image sensor

The housing is made by special material, waterproof up to IP65 grade

The fourth generation of IR array illumination, which can improve the photoelectric conversion efficiency

The IR LED lifespan is more than five years and night vision has an effective result

Use accurate constant current source technology

LED board is designed to separate from the control circuit board to make it more stable

High-power lighting protection circuit, to make the CCD board more stable

The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it strong

Image sensor: 1/3-inch color Sony CCD

CCD total pixel:

Scanning system: PAL/NTSC

Sync system: internal

Minimum illumination: 1 lux F1.2, 0 lux (IR on)

Resolution: 450TVL

Lens: 1 lux F1.4, 0 lux 4 to 16mm (optional)

IR distance: 0 to 20m

IR LED: ∮8/18pcs

WBC: 1/50 to 1/100000s auto

AG: AGC

S/N ratio: ≥48dB

Exposure time: auto

Auto iris: electronic shutter

Mirror function: on/off (optional)

BLC: on/off (optional)

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperatures: -20 to 50°C

Working humidity: 85% RH

Power supply: 12V DC

Power consumption: ≤450mA

Dimensions: 130 x 72 x 65mm

PAL: 542 x 582

NTSC: 542 x 582
