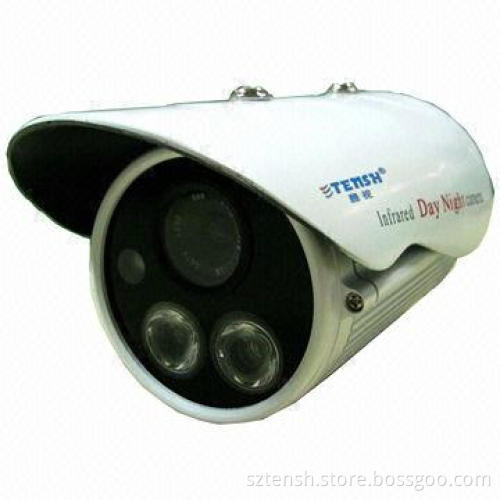

90 Array Type IR Camera
  • 90 Array Type IR Camera
90 Array Type IR Camera

90 Array Type IR Camera

Get Latest Price
Payment Type:
Advance T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advance T/T or PayPal
Product Description
Product Description
  • Feature:
    • Color high sensitivity CCD image sensor, it shows the superior image effects
    • High resolution, BLC, AGC, AWB, mirror function
    • The housing is made by special material, waterproof up to IP66 level
    • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
    • The IR LED lifetime more than five years and night-vision has an effective result
    • Uses accurate constant current source technology
    • LED board is designed to separate from the control circuit board, to make it more stable
    • High-powered lighting protection circuit, to make the CCD bord more stable
    • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work
  • Specifications:
    • Image sensors: 1/4 Sharp, 1/3 colored Sony CCD
    • CCD total pixel:
      P: 500 (H) x 582 (V) ,dd>N: 512 (H) x 492 (V)
    • Scanning system: PAL/NTSC
    • Sync system: internal
    • Minimum illuminations: 1lux F1.2/0lux(IR-on)
    • Resolution: 420TVL
    • Lens: F1.4/16mm
    • IR distance: 0-80m, 0-40m
    • IR LED: 2pcs, 1pcs
    • WBC: auto
    • AG: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto-iris: electronic shutter
    • Mirror function: on/off (optional)
    • BLC: on/off (optional)
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 to 50°C
    • Working humidity: 85% RH
    • Power supply: DC 12V
    • Power consumption: ≤450mA
    • Measurement: 205 x 105 x 105mm
  • Color high sensitivity CCD image sensor, it shows the superior image effects
  • High resolution, BLC, AGC, AWB, mirror function
  • The housing is made by special material, waterproof up to IP66 level
  • The third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
  • The IR LED lifetime more than five years and night-vision has an effective result
  • Uses accurate constant current source technology
  • LED board is designed to separate from the control circuit board, to make it more stable
  • High-powered lighting protection circuit, to make the CCD bord more stable
  • The CCD board is designed by two PCB boards, every PCB board has four layers circuit, to make it work
  • Image sensors: 1/4 Sharp, 1/3 colored Sony CCD
  • CCD total pixel:
    P: 500 (H) x 582 (V) ,dd>N: 512 (H) x 492 (V)
  • Scanning system: PAL/NTSC
  • Sync system: internal
  • Minimum illuminations: 1lux F1.2/0lux(IR-on)
  • Resolution: 420TVL
  • Lens: F1.4/16mm
  • IR distance: 0-80m, 0-40m
  • IR LED: 2pcs, 1pcs
  • WBC: auto
  • AG: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto-iris: electronic shutter
  • Mirror function: on/off (optional)
  • BLC: on/off (optional)
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 to 50°C
  • Working humidity: 85% RH
  • Power supply: DC 12V
  • Power consumption: ≤450mA
  • Measurement: 205 x 105 x 105mm
