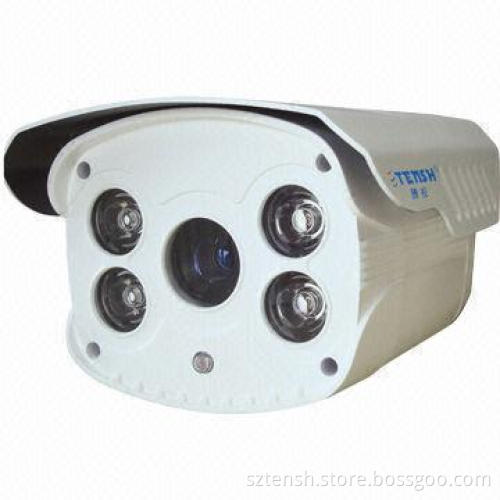

700TVL High Resolution Dual-core Camera, 1/3-inch Sony CCD, Up to 120m Night Vision Distance

Get Latest Price

Payment Type:: T/T in Advance or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance or PayPal

Product Description

Features:

Color high sensitivity CCD image sensor, shows the superior image effects
High resolution, BLC, AGC, AWB, mirror function
Housing is made by special material, waterproof up to IP66 level
Third generation of IR array illuminant,which can improve the photoelectric conversion efficiency, IR LED lifespan more than five years and night vision has an effective result
Use accurate constant current source technology, the LED board is designed to separate from the control circuit board,to make it more stability
High power lighting protection circuit, to make the CCD bord more stability
CCD board is designed by two PCB boards, every PCB board has six layers circuit, to make it work strengthen

Specifications:

Image sensor: 1/3-inch color Sony CCD
CCD total pixel:
- PAL: 976 x 582
- NTSC: 976 x 494
Scanning system: PAL/NTSC
Sync system: internal
Minimum illumination: 1 lux F1.2/0 lux (IR on)
Resolution: 700TVL
Lens: F1.2/16mm
IR distance: 0 to 120m
IR LED: 4pcs
WBC: auto
AGC: supported
S/N ratio: ≥48dB
Exposure time: auto
Auto iris: electronic shutter
Mirror function: on/off (optional)
BLC: on/off (optional)
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20 to 50°C
Working humidity: 85% RH
Power supply: DC 12V
Power consumption: ≤450mA
Dimensions: 214 x 32 x 96mm
