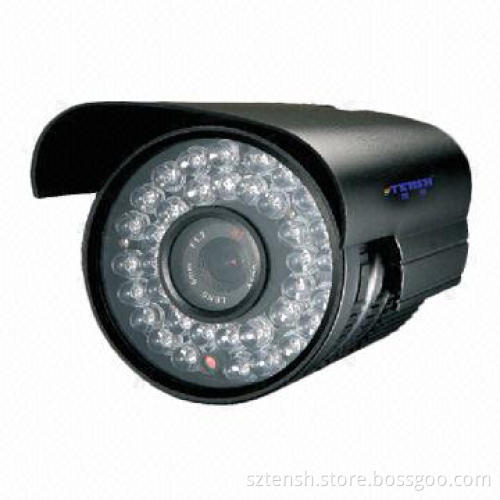

0-60m waterproof IR camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

Model: TS-F010CH/TS-F836CH

Image sensor: 1/3-inch color Sony CCD

CCD total pixel:

Scanning system: PAL/NTSC

Sync system: internal

Scanning area: 4.9 x 3.7mm

Resolution: 450TVL

Lens: F1.4/16mm, F1.4/8mm

IR distance: 0—80m, 50m

IR LED: piranhas/12pcs, 8/36pcs

WBC: auto

AG: AGC

S/N ratio: ≥48dB

Exposure time: auto

Auto-iris: electronic shutter

Mirror function: on/off (optional)

BLC: on/off (optional)

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperature: -20 to 50°C

Power supply: DC 12V

Power consumption: ≤1,000mA/≤500mA

Measurement: 380 x 112 x 111mm/165 x 100 x 90mm

Constant current circuit design

Monitoring 24 hours and the LED life time up to 6000 hours

The housing is make by special material, waterproof up to IP66

Safe voltage and newest infrared technology

Night-vision has great effect in long-range distance

P: 500 (H) x 582 (V)

N: 752 (H) x 582 (V)
