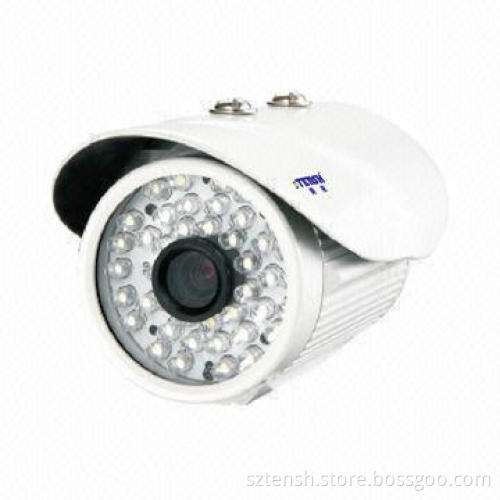

White LED CCTV Camera with Scanning System of PAL/NTSC

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance or PayPal

Product Description

Model: TS-TB16S/TS-TB16H

Image sensor: 1/3 Sony Color CCD

Total pixels: 542 (horizontal) x 582 (vertical)

Scanning system: PAL/NTSC

Sync system: internal synchronous

Minimum illumination: 0.001 lux F1.2/0 lux (infrared on)

Horizontal resolution: 420TVL/650TVL

Lens: F1.4/16MM/F1.4/12MM/MTV6MM

Night vision distance: 50m/40m/30m

White array light: Ø8/32pcs, Ø8/42pcs, Ø8/30pcs

White balance: auto

Model gain: AGC

S/N ratio: ≥48dB

Exposure time: 1/50-1/100,000sec auto

Automatic aperture: electronic shutter

Mirror function: on/off option

Backlight compensation: on/off (optional)

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Operating temperature: -20 to 55°C

Working environment humidity: ≤85% RH

Power supply: DC 12V

Power consumption: ≤450W

Measurement: 390 x 138 x 100mm/205 x 105 x 105mm/150 x 90 x 80mm
