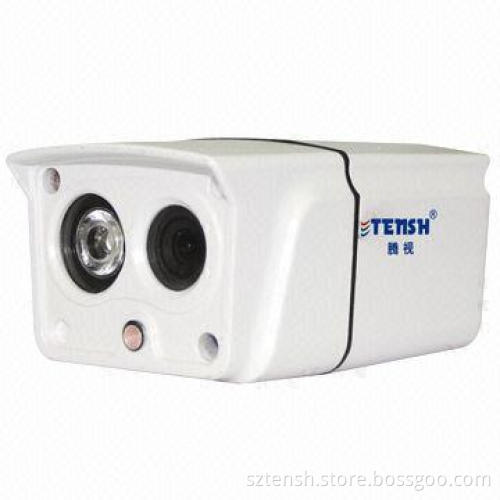

800TVL High-definition Camera Series with 12V DC Power Supply, Sized 110 x 70 x 55mm
  • 800TVL High-definition Camera Series with 12V DC Power Supply, Sized 110 x 70 x 55mm
800TVL High-definition Camera Series with 12V DC Power Supply, Sized 110 x 70 x 55mm

800TVL High-definition Camera Series with 12V DC Power Supply, Sized 110 x 70 x 55mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Color high-sensitivity DIS image sensor, it shows the superior image effects
    • High-resolution, BLC, AGC, AWB, mirror function
    • The housing is made by special material, waterproof up to IP66 level
    • The third generation of IR array illumination, which can improve the photoelectric conversion efficiency
    • The IR LED lifetime more than five years and night vision has an effective result
    • Use accurate constant current source technology, The LED board is designed to separate from the control circuit board, to make it more stability
    • High-power lighting protection circuit, to make the CCD board more stability
  • Specifications:
    • Image sensor: 1/4 DIS
    • CCD total pixels:
      • P (H x V): 720 x 480 pixels
      • N (H x V): 720 x 480 pixels
    • Sync system: Internal
    • Minimum illumination: 1 Lux F1.2/0 Lux (IR-on)
    • Resolution: 800TVL
    • Lens: F1.2/12mm
    • IR distance: 0 to 40m
    • IR LED: 1 piece
    • WBC: auto
    • AG: AGC
    • S/N ratio: ≥48dB
    • Exposure time: auto
    • Auto iris: electronic shutter
    • Mirror function on/off optionally
    • BLC: on/off optionally
    • Video output: 1.0Vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature: -20 to 50℃
    • Working humidity: 85% RH
    • Power supply: 12V DC
    • Power consumption: ≤450mA
    • Measurement: 110 x 70 x 55mm
  • Color high-sensitivity DIS image sensor, it shows the superior image effects
  • High-resolution, BLC, AGC, AWB, mirror function
  • The housing is made by special material, waterproof up to IP66 level
  • The third generation of IR array illumination, which can improve the photoelectric conversion efficiency
  • The IR LED lifetime more than five years and night vision has an effective result
  • Use accurate constant current source technology, The LED board is designed to separate from the control circuit board, to make it more stability
  • High-power lighting protection circuit, to make the CCD board more stability
  • Image sensor: 1/4 DIS
  • CCD total pixels:
    • P (H x V): 720 x 480 pixels
    • N (H x V): 720 x 480 pixels
  • Sync system: Internal
  • Minimum illumination: 1 Lux F1.2/0 Lux (IR-on)
  • Resolution: 800TVL
  • Lens: F1.2/12mm
  • IR distance: 0 to 40m
  • IR LED: 1 piece
  • WBC: auto
  • AG: AGC
  • S/N ratio: ≥48dB
  • Exposure time: auto
  • Auto iris: electronic shutter
  • Mirror function on/off optionally
  • BLC: on/off optionally
  • Video output: 1.0Vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature: -20 to 50℃
  • Working humidity: 85% RH
  • Power supply: 12V DC
  • Power consumption: ≤450mA
  • Measurement: 110 x 70 x 55mm
  • P (H x V): 720 x 480 pixels
  • N (H x V): 720 x 480 pixels
