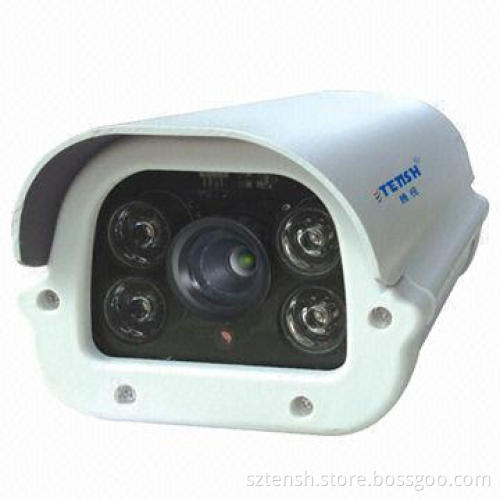

800TVL High Definition IR Camera Series

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

Color high sensitivity DIS image sensor, Shows the superior image effects
High resolution with BLC, AGC and AWB mirror functions
Housing is made by special material, waterproof up to IP 66 level
Third generation of IR array illuminant, which can improve the photoelectric conversion efficiency
IR LED lifetime is more than five years and night vision has an effective result
Uses accurate constant current source technology
LED board is designed to separate from the control circuit board to make it more stable
High power lighting protection circuit, to make the CCD board more stable
Model: TS-S800S-4D2S
Image sensor: 1/4 DIS
CCD total pixels:
- P: 720 (H) x 480 (V)
- N: 720 (H) x 480 (V)
Sync system: Internal
Minimum illumination: 1lux F1.2/0lux (IR ON)
Resolution: 800TVL
Lens range: 3.6—16MM
IR distance range: 0—120M
IR LED: 4pcs
WBC: Auto
AGC: AGC
S/N ratio: ≥48db
Exposure time: Auto
Auto iris: Electronic shutter
Mirror function: On/off optionally
BLC: On/off optionally
Video output: 1.0Vp-p/75Ω
Gamma correction: 0.45
Working temperatures: -20-50℃
Working humidity: 85%RH
Power supply: DC 12V
Power consumption: ≤450mA
Measurements: 280 x 138 x 100mm
