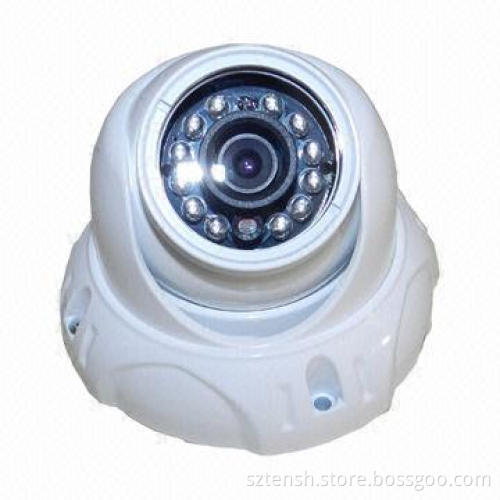

600TVL CCTV Dome Camera with 12V DC Power Supply, 85% RH Humudity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Color high-sensitivity CCD image sensor

Shows superior image effects

High-resolution, BLC, AGC, AWB and mirror functions

The housing is made by special material

Waterproof up to IP66 level

The fourth generation of IR array illumination, which can improve the photoelectric conversion efficiency

The IR LED lifetime more than five years and night vision has an effective result

Use accurate constant current source technology

LED board is designed separately from the control circuit board, to make it more stable

High-power lighting protection circuit, to make the CCD board more stable

Image sensor: 1/3-inch color Sony CCD

CCD total pixels (H x V):

Scanning system: PAL/NTSC

Sync system: internal

Minimum illumination: 1 Lux F1.2/0 Lux (IR-on)

Resolution: 600TVL

Lens: MTV 3.6 to 16mm optional

IR distance range: 0 to 15m

IR LEDs: 12 pieces

WBC: 1/50 to 1/100,000 seconds automatic

AG: AGC

S/N ratio: ≥48dB

Exposure time: auto

Auto-iris: electronic shutter

Mirror function: on/off (optional)

BLC: on/off (optional)

Video output: 1.0Vp-p/75Ω

Gamma correction: 0.45

Working temperature: -20 to 50℃

Working humidity: 85% RH

Power supply: 12V DC

Power consumption: ≤450mA

PAL: 648 x 488

NTSC: 648 x 488
