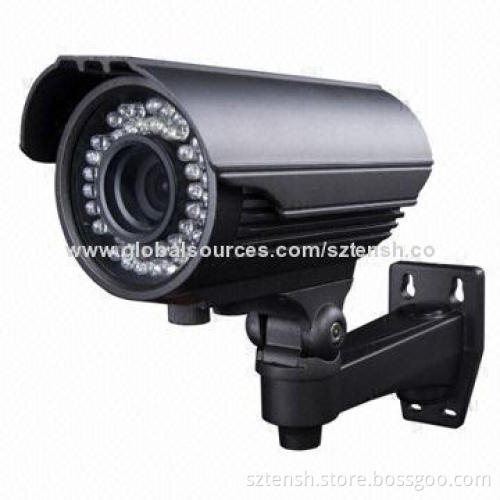

CVI camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

1/3CMOS, DH9801 sensor, 1280X960 Pixel
High quality image
With HD CVI digital port, support Coaxial video cable transmitting distance 500 meters
Real-time transmission, without delay
Support for high-definition video signal coaxial transmission
ICR switching support to achieve the day and night monitoring
Support 3D noise reduction and extra low illumination
Waterproof rate: IP66.
Two camera color optional

Specifications:

Model No. S-CVI5
Lens 2.8-12lens
IR Led 42pcs IR led, 40M IR distance
Image Sensor 1/3CMOS pixelpls_x-khan(PC3100K)
Main processor ISP processor DH9801
Pixel 1280(H)*960(V)
Day and night auto(ICR)/color/B/W
Linux 0.01Lux/F1.2(color), 0.001Lux/F1.2(B/W)
WB Auto
Video frame rate 1280*720 25fps, 720x576 50fps
Video output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (can switch)
Image adjustment can adjust image lightness, sharpness, contrast and so on
Gamma adjustment support 16pcs Gamma curve
3D DNR support
Power supply DC12V±10%
Power consumption Max 7.7W
Working environment -30°C~+60°C/ Less than 95%RH (no condensation)
Ingress protection: IP66
Transmission distance: Over 500m via 75-3 coaxial cable
Dimensions(W×D×H) 280x136.9x101mm
Weight 1.5kg
