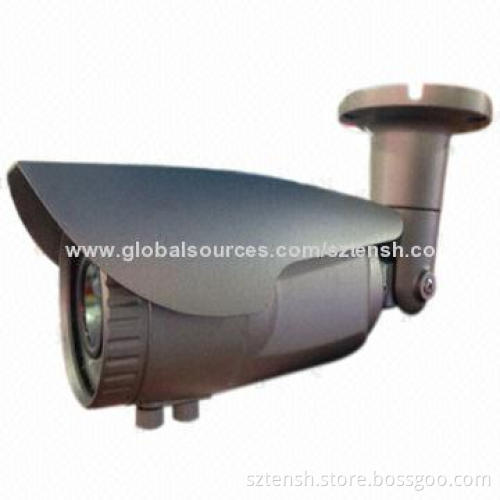

CVI Camera, Supports for High-definition Video Signal Coaxial

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advance T/T or PayPal

Product Description

Features:

1/3-inch CMOS, DH9801 sensor, 1,280 x 960 pixels X-khan (PC3100K)
High-quality image
With HD CVI digital port, supports coaxial video cable transmitting distance 500 meters
Real-time transmission, without delay
Supports for high-definition video signal coaxial transmission
ICR switching support to achieve the day and night monitoring
Supports 3D noise reduction and extra low-illumination
Waterproof rate: IP66
Two camera colors (optional)
Specification:
Model number: S-CVI36B
Lens 3.6mm
IR LLEDs: 36 pieces of IR LEDs, 30m IR distance
Main processor: ISP processor DH9801
Day and night: auto (ICR)/color/B/W
OS: Linux, 0.01 Lux/F1.2 (color), 0.001 Lux/F1.2 (B/W)
WB: auto
Video frame rate: 1,280 x 720P 25fps, 720 x 576P 50fps
Video output: 1-channel BNC HDCVI high-definition video output/CVBS standard definition video output (can switch)
Image adjustment: can adjust image lightness, sharpness, contrast and more
Gamma: adjustment supports 16 pieces gamma curves
3D DNR: supported
Power supply: 12V DC ±10%
Power consumption: 7.7W (maximum)
Working environment: -30 - +60°C/less than 95% RH (non-condensation)
Ingress protection: IP66
Transmission distance: over 500m via 75-3 coaxial cable
Dimensions (WxDxH): 280x136.9x101mm
Weight: 0.5kg
