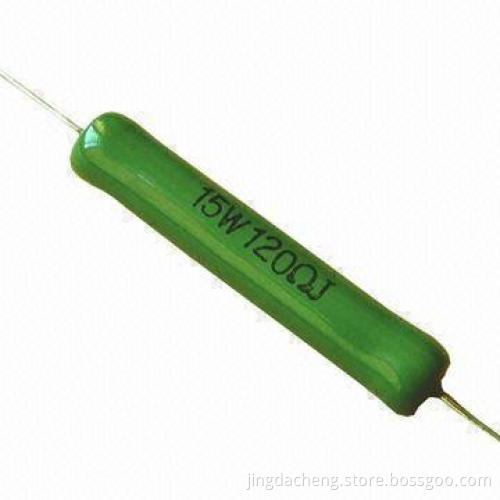

Vitreous Enamel Coated Power High Energy Wirewound Resistor with Axial Lead

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

BKN series of vitreous enamel coated power resistors from token offers a cost-competitive alternative over the 2.5 to 12W power range

The range is available with resistance values of 1Ω to 39KΩ in power ratings of 2.5, 3, 5, 6, 8, 9 and 12W (at 25°C), and with body sizes that match the industry standards

Vitreous enamelled resistors were introduced at a time when alternative directly applied coatings could not withstand the thermal stresses caused by the resistors' high body temperatures

Excellent pulse load capability

Axial leads, all-welded construction

Wide range of power ratings: 2.5 to 12W

Wide resistance range 1Ω to 39KΩ, tolerance ±5%, ±10%

Products with Pb-free terminations and RoHS compliant

Rugged vitreous enamel coating withstands high humidity and temperature cycling

Applications:

Power tools

Consumer applications

Power supplies, welders

High voltage applications

High-switching applications
