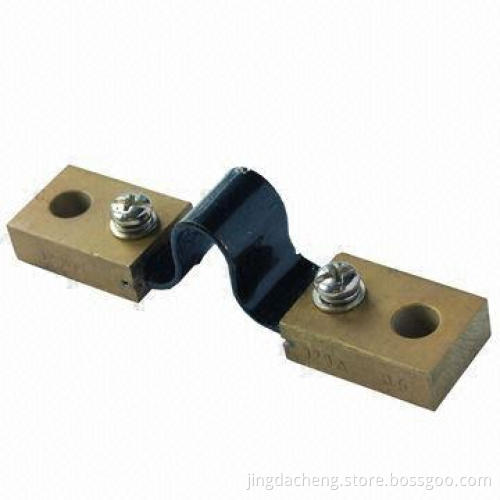

DC Ammeter Shunt with 50mV/100mV Outputs Voltage adn 0.1% Tolerance

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Current shunt resistors (FL) for high-current applications aid precision measurement

Current shunts are low resistance precision resistors used to measure AC or DC electrical currents by the voltage drop those currents create across the resistance

Sometimes called an ammeter shunt, it is a type of current sensor

Voltage drop: 50, 60, 75 and 100mV

Accuracy class: 0.5% for 5 to 40,000A, 1% for 5,000 to 6,000A

Over rating capacity 120% of rated current for 2 hours

Ambient conditions:

Temperature: -40 to +60°C

Relative humidity: ≤95% 35°C
