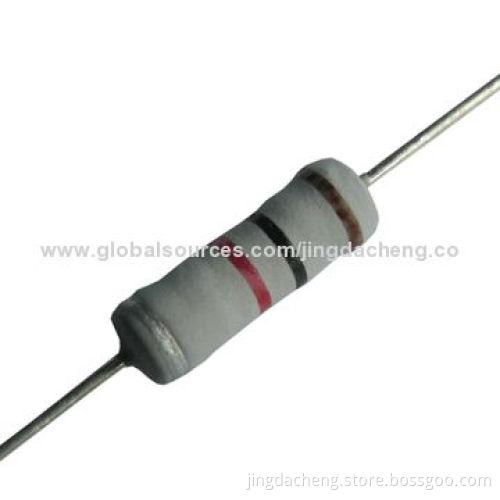

Ceramic Composition Resistor, Used for Defibrillator and High-voltage Power Supply

Bulk metal ceramic resistors that consists of a clay, alumina, and ceramic filler that has been blended and pressurized into a resistive core and then covered with a molded outer insulating coreDesign requirements for custom sizes, surface mount, or special footprints can be met easilyIn cases where several carbon-composition resistors have been used together in an array to achieve a particular rating, they have been replaced with a single bulk ceramic resistor, frequently at a lower installed costOperating temperature: -40 to 155°CResistance tolerance: K (±10%), M (±20%)Typical resistance range: 1to 50k OhmsReplaces 1 and 2W carbon composition resistorsSuitable for noise suppressor of engine ignition systemHigh-peak power, reliable with non-disconnection failureRated wattage up 5W, meets high-energy density demandsRadar, motor drives, broadcast transmittersX-ray, lasers, medical defibrillatorsDynamic braking, soft-start/current-limitSnubber circuits, dummy loads, energy research RF amplifiers, semiconductor process, power conditioning
