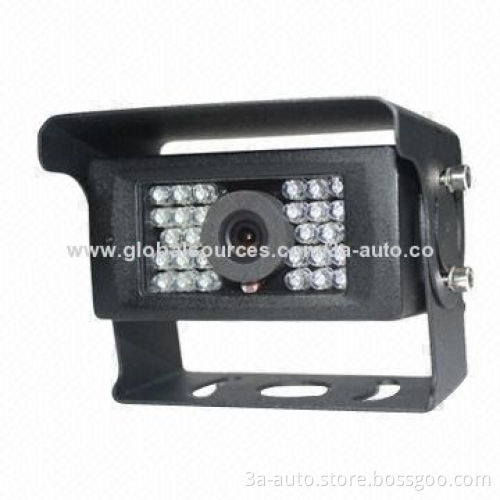

Day/Night Waterproof IR Night Vision, 28pcs Infrared LED, 22m IR Distant

Day/Night Waterproof IR Night Vision, 28pcs Infrared LED, 22m IR Distant

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Waterproof and weatherproof housing for outdoor use

Night vision

Day/night sensor for automatic adjustment

IR distance: 22m

Infrared LED light: 28 pieces

Mirror/normal image switch (depending on the chips)

Distance label selectable to be open or closed

Image sensor: 1/3-inch color CCD sensor

With audio and IR

Image device: Sharp

TV systems: PAL/NTSC

Effective pixels: 512 x 582/512 x 492

Sensing area: 4.9 x 3.7mm

Scanning system: 2:1 interlace

Synchronization system: internal

Resolution: 420TVL

Horizontal synchronization frequency: 15.625/15.734kHz

Vertical synchronization frequency: 50/60Hz

Minimum illumination: 0 Lux/F1.2 with IR

Microphone: (optional)

Video output: 1.0vp-p, 75^©

Gamma consumption: 0.45

AGC: automatic

S/N ratio: more than 48dB

White balance: automatic

Electronic shutter:

NTSC: 1/60 to 1/10,000s
PAL: 1/50 to 1/10,000s

BLC: automatic

Current consumption: 300mA

Power supply: 12V DC

Operating temperatures: -20 to 70°C, 95% RH(maximum)

Storage temperatures: -40 to 80°C, 95% RH(maximum)

Lens:

F = 3.6/2.8mm
F = 2.0

Lens angle: 92/120°

NTSC: 1/60 to 1/10,000s

PAL: 1/50 to 1/10,000s

F = 3.6/2.8mm

F = 2.0
