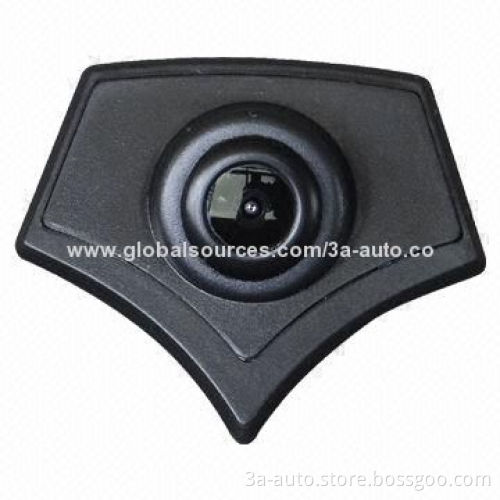

Front View Car Camera for Mazda, 3.3V DC Operating Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Imaging device: PC1030/OV7959/PC3030/PC1089 (optional)

Resolution: 648 x 488/656 x 492/682 x 504/762 x 504 pixels (optional)

Imaging area: 3.6 x 2.7/4.0 x 3.0/3.8 x 2.9/4.6 x 3.6mm (optional)

Image sensor: 1/4/1/3.7/1/3-inch (optional)

Video format: NTSC/PAL (optional)

Video output signal: CVBS 1.0Vp-p, 75 Ohms

Frame rate: 30fps

Signal to noise ratio: >50dB (AOC-on)

Dynamic range: >80dB

Minimum illumination: 0.2Lux

Viewing angle: 150-180 degrees (optional)

Optical lens: EFL = 1.8mm

Operating environment temperatures: -20 to 85°C, 95% RH(maximum)

Waterproof index: IP68

Operating voltage: 3.3V DC

Operating current: d75mA

Length of BMW waterproof connector cable: 3.5m
