Product Description

Features:

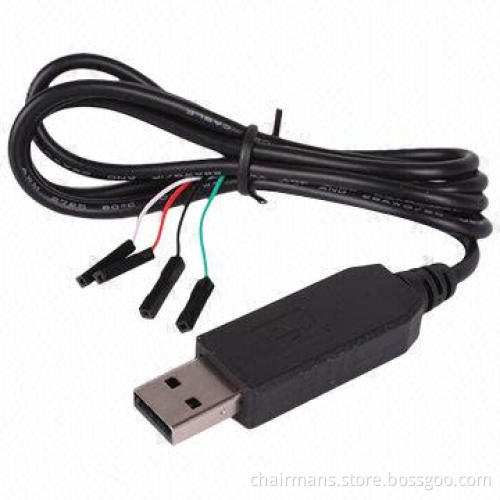

PL2303HX USB to TTL cable, 6pin FTDI FT232RL USB to serial adapter module USB to TTL RS232 Arduino cable
FTDI based USB to TTL serial cable are designed using the the standard FT232RL chipset
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB
RX and TX LEDs indicator
TTL levels is 5V
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to serial UART interface IC device, which handles all the USB signalling and protocols
Each TTL-232R cable contains a small internal electronic circuit board, utilizing the FT232R, which is encapsulated into the USB connector end of the cable
The other end of the cable comes with a selection of different connectors supporting various applications
Cables are compliant with FCC, CE, standards and RoHS Directive
Cables are available with either a 6-way SIL, 0.1" pitch connector, a 3.5mm audio jack, an 8-way, keyed 2mm pitch connector (intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections
The USB side of the cable is USB powered and USB 2.0 full speed compatible
Each cable is 1.8m long and supports a data transfer rate up to 3M baud

Specifications:

Red wire: 5V
Black wire: GND
White wire: RXD
Green wire: TXD
Yellow wire: RTS
Blue wire: CTS

PL2303HX USB to TTL cable, 6pin FTDI FT232RL USB to serial adapter module USB to TTL RS232 Arduino cable

FTDI based USB to TTL serial cable are designed using the the standard FT232RL chipset

The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB

RX and TX LEDs indicator

TTL levels is 5V

The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to serial UART interface IC device, which handles all the USB signalling and protocols

Each TTL-232R cable contains a small internal electronic circuit board, utilizing the FT232R, which is encapsulated into the USB connector end of the cable

The other end of the cable comes with a selection of different connectors supporting various applications

Cables are compliant with FCC, CE, standards and RoHS Directive

Cables are available with either a 6-way SIL, 0.1" pitch connector, a 3.5mm audio jack, an 8-way, keyed 2mm pitch connector (intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections

The USB side of the cable is USB powered and USB 2.0 full speed compatible

Each cable is 1.8m long and supports a data transfer rate up to 3M baud

Red wire: 5V

Black wire: GND

White wire: RXD

Green wire: TXD

Yellow wire: RTS

Blue wire: CTS
