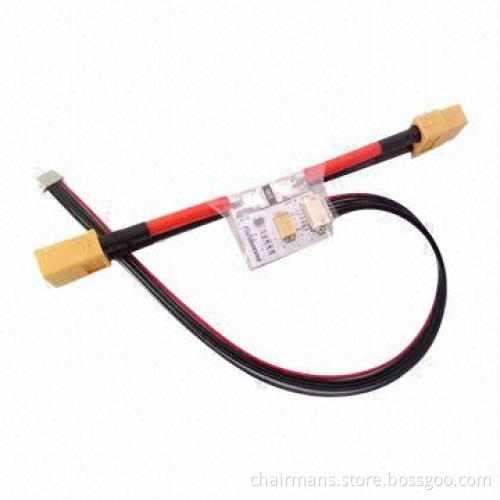

APM Power Module, BEC with XT60
  • APM Power Module, BEC with XT60
  • APM Power Module, BEC with XT60
  • APM Power Module, BEC with XT60
APM Power Module, BEC with XT60
APM Power Module, BEC with XT60
APM Power Module, BEC with XT60

APM Power Module, BEC with XT60

Get Latest Price
Payment Type:
L/C, T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T, Western Union or PayPal
Product Description
Product Description
  • It is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
  • Note: It is a   is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is notdesigned to power servos. Use your aircraft's own ESC/BEC for that.
  • APM Power Module 5.3V DC BEC With XT60 Connectors ARDUPILOT, APM2.5, APM 2.5.2, APM2.6
  • Specifications:
    • Max input voltage: 25V
    • Max current sensing: 90A
    • T connector, XT60 connector.
    • Voltage and current measurement configured for 5V ADC
    • Switching regulator outputs 5.3V and 2.25A max
    • 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
  • Max input voltage: 25V
  • Max current sensing: 90A
  • T connector, XT60 connector.
  • Voltage and current measurement configured for 5V ADC
  • Switching regulator outputs 5.3V and 2.25A max
  • 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
