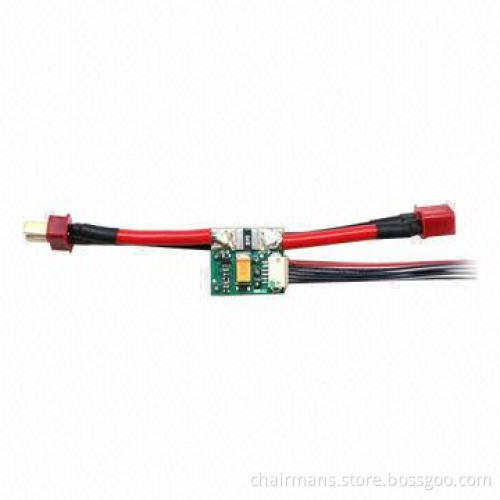

APM Power Module, APM2.5/APM2.52/APM2.6
  • APM Power Module, APM2.5/APM2.52/APM2.6
  • APM Power Module, APM2.5/APM2.52/APM2.6
  • APM Power Module, APM2.5/APM2.52/APM2.6
  • APM Power Module, APM2.5/APM2.52/APM2.6
  • APM Power Module, APM2.5/APM2.52/APM2.6
APM Power Module, APM2.5/APM2.52/APM2.6
APM Power Module, APM2.5/APM2.52/APM2.6
APM Power Module, APM2.5/APM2.52/APM2.6
APM Power Module, APM2.5/APM2.52/APM2.6
APM Power Module, APM2.5/APM2.52/APM2.6

APM Power Module, APM2.5/APM2.52/APM2.6

Get Latest Price
Payment Type:
L/C, T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T, Western Union or PayPal
Product Description
Product Description
  • The APM 2.5 power module is a simple way of providing your APM 2.5 with clean power from a Li-Po battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The power module comes completely assembled with deans connectors, and wrapped in shrink tubing for protection
  • Note: Thepower module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that
  • APM power module 5.3V DC BEC With XT60 connectors ARDUPILOT APM 2.5.2, APM2.5, APM2.6
  • Specifications:
    • Max input voltage: 25V
    • Max current sensing: 90A
    • please note 2 kinds of the connectors: T connector or XT60 connector
    • Voltage and current measurement configured for 5V ADC
    • Switching regulator outputs 5.3V and 2.25A max
    • 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
  • Max input voltage: 25V
  • Max current sensing: 90A
  • please note 2 kinds of the connectors: T connector or XT60 connector
  • Voltage and current measurement configured for 5V ADC
  • Switching regulator outputs 5.3V and 2.25A max
  • 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
