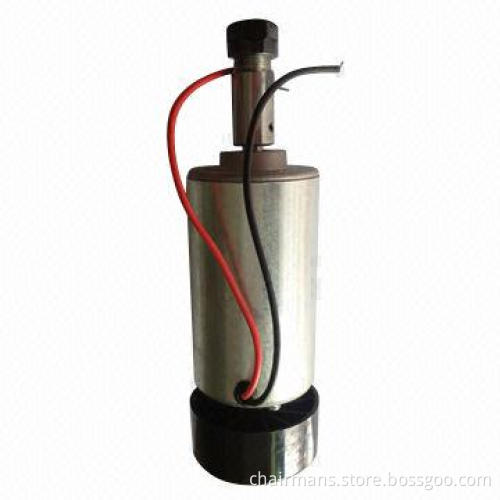

300W Engraving Machine Carving 12/24/36/48V Milling Grinding Spindle Motor, 230Nm Torque

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union or PayPal

Product Description

Collect: 3.175mm

Operating voltage 12-48V DC (recommended 36V)

Power: 300W

Speed: 3,000-12,000r/minute (12V-3,000 transfer, 24V-6,000 transfer, 36V-9,000 transfer, 48V-12,000rpm)

Torque: 230Nm

Insulation resistance: >2mΩ

Dielectric strength: 400V

Diameter: 52mm

Chuck some length: arbor parts of 35mm (contains nuts and sandwich-43mm)

Diameter of axis collect holder: 16mm

Motor total length: 180mm (includes gripping parts and motor)

The spindle run out of about 0.01-0.04

Can be used for engraving metal or nonmetal materials

Weight: 900g

100% brand new high-quality
