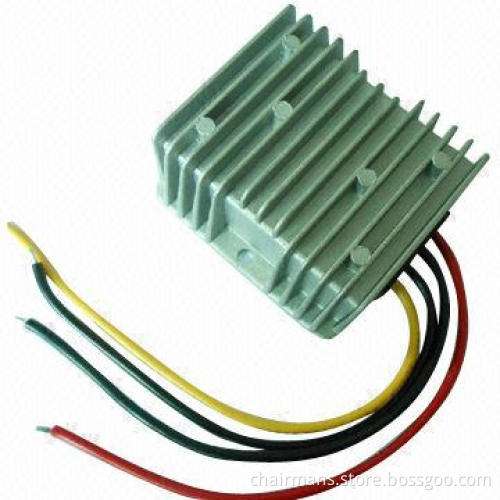

DC-DC Voltage Converter, 48 to 12V, 10A, Easy and Simple Installation

DC-DC Voltage Converter, 48 to 12V, 10A, Easy and Simple Installation

Get Latest Price

Payment Type:: L/C, T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union or PayPal

Product Description

Description:

Die-cast aluminum housing with epoxy sealed containers
100% waterproof with anti-shock protection
Lightweight and ultra-compact size
More than 90% power conversion efficiency
Built-in over/under-voltage input, overload, over-heat and short circuit fully protection
Auto-recovery when converter is back to normal operating
Stable and reliable performance
Easy and simple installation

Specifications:

Input voltage: 48V DC
Input voltage range: 30 - 60V DC
Output voltage: 12V DC
Output current: 10A (maximum), 120W
Transfer efficiency: >85%
Load regulation: ±2%
Voltage regulation factor: ±1%
Dynamic response speed: 5% 200us
Operating temperature: -10 - 60°C (temperature more than 40°C, please reduce power use or the use of aluminum plate thermal conductivity or air-cooled enhance heat-dissipation)
Wire lengths: 20cm
Construction: die-cast aluminum casing, epoxy sealed potting
Dimensions: 75 x 75 x 32mm
Aluminum alloy shell weight: about 260g

Wiring connection:

Input: red: power + black: power -
Output: yellow + black: -

Die-cast aluminum housing with epoxy sealed containers

100% waterproof with anti-shock protection

Lightweight and ultra-compact size

More than 90% power conversion efficiency

Built-in over/under-voltage input, overload, over-heat and short circuit fully protection

Auto-recovery when converter is back to normal operating

Stable and reliable performance

Easy and simple installation

Input voltage: 48V DC

Input voltage range: 30 - 60V DC

Output voltage: 12V DC

Output current: 10A (maximum), 120W

Transfer efficiency: >85%

Load regulation: ±2%

Voltage regulation factor: ±1%

Dynamic response speed: 5% 200us

Operating temperature: -10 - 60°C (temperature more than 40°C, please reduce power use or the use of aluminum plate thermal conductivity or air-cooled enhance heat-dissipation)

Wire lengths: 20cm

Construction: die-cast aluminum casing, epoxy sealed potting

Dimensions: 75 x 75 x 32mm

Aluminum alloy shell weight: about 260g

Input: red: power + black: power -

Output: yellow + black: -
