Product Description

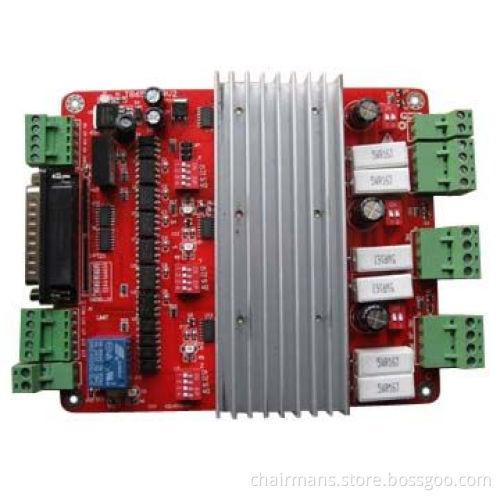

CNC TB6560 3 axis stepper motor driver controller board for engraving machine

CNC TB6560 3 axis stepper motor driver controller board is suitable for processing various pattern mould, carving portrait, scenery, handwriting, sealing. It is good for advising, such as brand, architecture mould, badge, nameplate, display boards, doorplate, furniture decoration

this board can support MACH2, MACH3, KCAM4 series software and the electric currents can be changed into 0.6A, 1.2A, 1.8A or 2.5A. With high accuracy, small vibration and low noise, no doubt that you surely enjoy it

Features:
It can drive three axis, the 4th axis expansion, to facilitate your needs 4-axis machining when working
Spindle relay output, easy to use software such as mach3 to control spindle start and stop
Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum
Interface with a fan, you can add fan under your choice
With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive
Standard parallel port interface, support for MACH2, KCAM4 series software
With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment
With limit switch, can connection 4 axis limit switch
Support four micro stepping 1, 1/2, 1/8, 1/16
12-36V single switching power supply, microchips to use as a 5V power supply, stable and heat small
Using RC + 7414 automatic semi-flow, the current automatic reduce when stepper motor stop to down the heat

Features:

It can drive three axis, the 4th axis expansion, to facilitate your needs 4-axis machining when working

Spindle relay output, easy to use software such as mach3 to control spindle start and stop

Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum

Interface with a fan, you can add fan under your choice

With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive

Standard parallel port interface, support for MACH2, KCAM4 series software

With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment

With limit switch, can connection 4 axis limit switch

Support four micro stepping 1, 1/2, 1/8, 1/16

12-36V single switching power supply, microchips to use as a 5V power supply, stable and heat small

Using RC + 7414 automatic semi-flow, the current automatic reduce when stepper motor stop to down the heat
