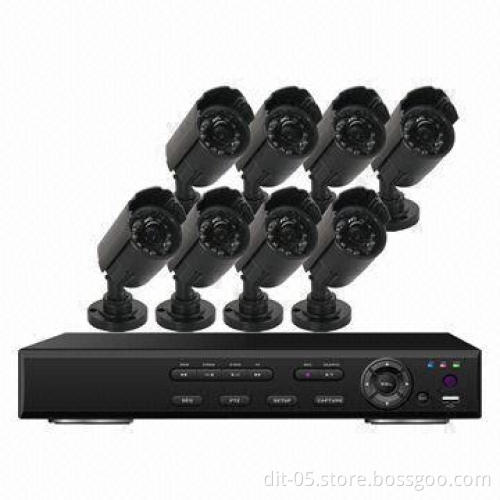

8-channel H.264 Standalone DVR, Supports Mobile Phone, Live View and E-mail Alarm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Video compression: H.264/ADPCM

Video system: HI3515

Operating system: Linux 2.6

Video-in: 8CH 1.0Vp-p, 75Ω, BNC

Video-out: 2CH, BNC x 1, (1.0Vp-p, 75Ω), VGA x 1

Audio input: 8CH, RCA

Audio output: 1CH, RCA

Display resolution: VGA x 1

Resolution: 1280 x 1024, CVBS x 1

PAL: 704 x 576 pixels

NTSC: 720 x 480 pixels

Frame rate:

Record resolution:

Features: display Seq, privacy cover and digital zoom

Record modes: normal, manual, alarm, motion and schedule

HDD: 1 SATA interface, up to 2TB

Playback search: date, time, events and channel

USB interface: USB 2.0 x 3

PTZ control: 1 RS-485 interface (for PTZ control)

Alarm: 4CH-in/1CH-out

E-mail alarm: supported

Network interface: 1 RJ-45, 10/100Mbps self-adaptive Ethernet interface

Network protocol: SMTP, UPNP, DDNS and PPPOE

Network function: preview, download, playback and backup

Backup: USB, HDD and Network

Playback mode: 8CH

Recording pack time: normal 60 minutes

Power supply: 12V/3A

VGA resolution: 1280 x 1024 pixels

Supports smartphone/3G Windows mobile/Symbian/iPhone/Android/BlackBerry

AX dimensions: 330 x 260 x 50mm

Weight: 2.6kg (without hard disk)

Camera specifications:

Image sensor: 1/4-inch Sony super HAD CCD
Effective pixels:
- PAL: (H x V) 500 x 582 pixels
- NTSC: (H x V) 510 ×492 pixels
Signal system: PAL/NTSC
Sync system: internal
Horizontal resolution: 420TVL
Lens: 3.6/6mm lens selectable
Minimum illumination: 0 lux (IR on)
Backlight compensation: automatic
Gain control: automatic
Shutter speed: 1/50 (1/60) to 1/100,000 seconds
White balance: automatic
S/N ratio: more than 48dB (AGC off)
Video output: 1.0Vp-p, 75Ω (BNC)
Power requirements: DC 12V/140mA, 300mA (IR on)
Operating temperature: -10 to 50°C
