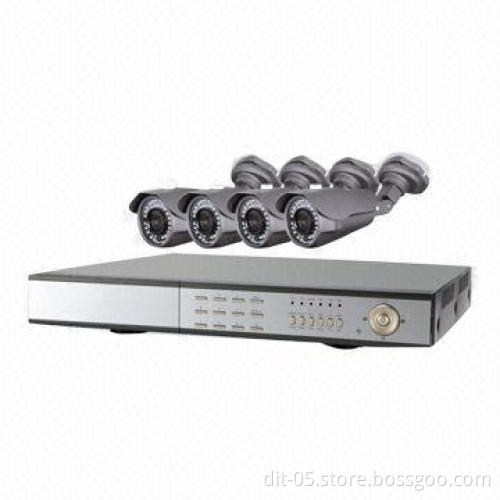

Standard H. 264 High Profile Features, with CMOS SDI-Camera

Get Latest Price

Payment Type:: Letter of Credit (LC, L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

DVR Specification

Compression Standard H.264 High Profile

OS Embedded Linux

Pentaplex live display/record/playback/backup/remote access

Video Input SDI x 4CH

Video Output BNC x 1CH: Main monitor, without spot

VGA x 1CH: 1,080P

HDMI x 1CH: 1,080P

Audio input: RCA x 4CH

Audio output: RCA x 1CH

No real time SDI x 4CH (6fps/ch)

Bit rate: 128K ~ 12 Mbps

Encode VBR/CBR

Quality 5 level

Mode manual, timer, motion, sensor

File management lock, unlock, reserving time, redundancy

Playback 4 CH

Search: time, motion, sensor, single or multi-channel

Functions: play, pause, FF,FB digital zoom

Mode: sensor, motion, video loss

Alarm input: 4CH

Alarm output: 4CH

Triggering Record, PTZ move, Relay out,E-mail, etc

Interface RJ45 Giga Ethernet

Dual-stream Individual Network Video Stream and local recording stream, set separately

Protocol TCP/IP.UDP,DHCP.DNS,PPPOE,DDNS,Email

Function multi-channel display,Server list, Record, Playback, PTZ, log

Backup Network,USB driver

HDD SATA x 2 , Support 4T per HDD , support DVD-RW

RS485 RS485 x 2 (for PTZ and Keyboard)

USB USB2.0 x 2 (for mouse and USB backup device)

Dimension （W）430mm×（D）300mm×(H）55mm

Power supply DC: 12V

Working environment 0°C ~50°C (Temperature) , 10% ~ 90%(Humidity)

Camera specification:

Image sensor: 2 Mega pixels 1/2.7 " OV2715 CMOS
Minimum illumination color: 0.5Lux/F1.2, B/W:0.1Lux/ F1.2
Resolution: 1920 x 1080（1080P）1280 x 720（720P）
Len interface C/CS
Lens: 4mm/6mm/8mm(optional)
Frame rate: 1080P: 25fps/720P: 50fps
HD - SDI output format: 1080P/720P
Color/B/W conversion manual/Auto
Back light compensation auto
White balance auto
Sync system external synchronous
IR LEDs: Φ5 x 42pcs
Power requirement: 560 ±5mA
Output interface: HD-SDI x 1, 12V DC x 1
Operation temperatures: -10℃ - 40℃
Dimension: 200mm(L) x 100mm(W) x102mm(H)

Image sensor: 2 Mega pixels 1/2.7 " OV2715 CMOS

Minimum illumination color: 0.5Lux/F1.2, B/W:0.1Lux/ F1.2

Resolution: 1920 x 1080（1080P）1280 x 720（720P）

Len interface C/CS

Lens: 4mm/6mm/8mm(optional)

Frame rate: 1080P: 25fps/720P: 50fps

HD - SDI output format: 1080P/720P

Color/B/W conversion manual/Auto

Back light compensation auto

White balance auto

Sync system external synchronous

IR LEDs: Φ5 x 42pcs

Power requirement: 560 ±5mA

Output interface: HD-SDI x 1, 12V DC x 1

Operation temperatures: -10℃ - 40℃

Dimension: 200mm(L) x 100mm(W) x102mm(H)
